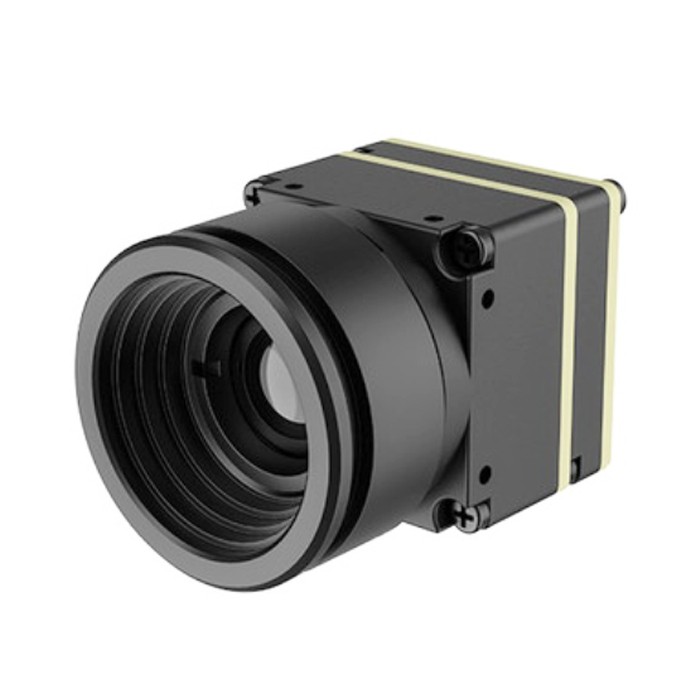

M3J640 Uncooled Infrared Thermal Imaging Module 640
The Micro3J Uncooled Infrared Module has a small size, light weight, and low power
consumption. It supports multiple serial communication and video output interfaces
and provides various lightweight infrared lenses. With good vibration and impact
resistance, it can provide comprehensive infrared imaging solutions for various
devices and systems, such as small handheld telescopes, head-mounted night vision
devices, lightweight UAV systems, and multi-spectrum fusion systems. It satisfies the
development of products with high-reliability requirements, including electro-optical
pods, vehicle-mounted applications, and scopes.
| Performance Characteristics | M3J640 | ||
| Detector Type | Uncooled VOx Infrared Detector | ||
| Resolution | 640x512 | ||
| Pixel Size | 12μm | ||
| Frame Rate | 50Hz | ||
| Spectral Band | 8~14μm | ||
| Noise Equivalent | <40mK @25℃,F#1.0 | ||
| Temperature Difference (NETD) | |||
| Startup Time | ≤4s(2) | ||
| TEC | None | ||
| Image Adjustment | |||
| Polarity | Black-hot/White-hot | ||
| Edge Highlight | Support | ||
| Palette | Support | ||
| Image Processing | Non-uniformity correction | ||
| Shutterless (3) | |||
| Digital filtering noise reduction | |||
| Digital detail enhancement | |||
| Reticle | Display/Blank/Move | ||
| Digital Zoom | 1.0~8.0x continuous zoom (step size:0.1) | 1.0~8.0x continuous zoom (step size:0.1) | |
| Mirroring | Horizontal/Vertical/Diagonal | Horizontal/Vertical/Diagonal | |
| Power Supply | |||
| Power Supply Range | 3.9~5VDC | ||
| 5~18V DC supported by user extension components (4) | |||
| Typical Service Voltage (7) | 4VDC(5) | ||
| Power Consumption (Typical,@25℃) | Without User Extension Component | ≤700mW | |
| With User Extension Component | ≤850mW | ||
| Power Protection | Overvoltage, undervoltage, and reverse connection supported by user extension components | ||
| Interface | |||
| Video Output | Analog Video | 1-channel PAL system (6) | |
| Digital Video | BT656 interlaced mode | ||
| BT656 progressive mode | |||
| USB2.0 | |||
| DVP | |||
| MIPI | |||
| Serial Communication Interface | USB2.0/RS232/UART (3.3V) | ||
| Physical Characteristics | |||
| Weight (Without Lens and Extension Components) | 21g±1g | ||
| Dimensions (Without Lens and Extension Components) | 26mmx26mmx19.8mm | ||
| Environment Adaptability | |||
| Operating Temperature | -40℃~+80℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Vibration | / | ||
| Impact | /(8) | ||
