1535nm 3KM Eyesafe Laser Ranging Module 3000m

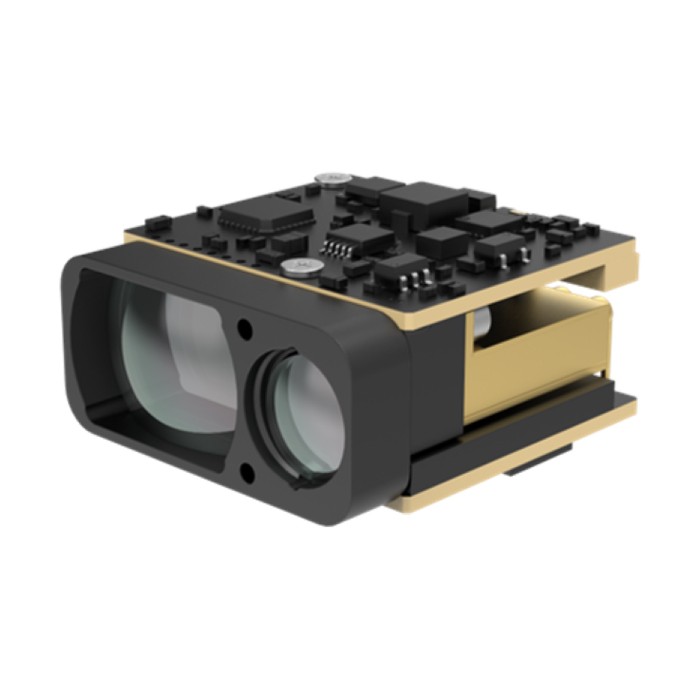

The LRF0308C eyesafe laser rangefinder moduleproduced by Sheng Fei Guang Su,utilizes a selfdeveloped 1535nm Diode Pump Solid State microchip laser. With a NATO target ranging capability of 2.3m×2.3m and a range of ≥3000m, it packs a punch in a small package, measuring ≤ 48×30.5× 21 mm and weighing ≤32g. This product boasts stable laserdistan
ce measurement, self-testing, power-up, and temperature collection and reporting capabilities.Among its many features are
three-target ranging, target indication both before and after measurement, single and continuous ranging modes, baud rate settingand tracking of the cumulative number of laser launches. Additionally, it supports serial port update
programs and offers various installation options and electrical interfaces, excluding the shell.To further facilitate its integration into handheld portable equipment or multifunctional systems, the module comes equipped with
upper computer test software andcommunication protocols.
| TECHNICAL SPECIFICATIONS | ||
| Project | Performance Indicators | |
| Model | LRF0308C | |
| Laser Wavelength | 1535±5nm | |
| Eye Safety | Class I(IEC 60825-1) | |
| Divergence Angle | ~0.6 mrad | |
| Launch Lens Diameter | Φ8mm | |
| Receiver Lens Diameter | Φ16mm | |
| Measuring Range (Reflectance 30%; visibility≥8km.) | Big Target (4mx6m) | ≥4600m |
| NATO objective(2.3mx2.3m) | ≥3200m | |
| People(0.5mx1.7m) | ≥2100m | |
| Drones(0.2mx0.3m) | ≥1100m | |
| Minimum Range | 15m | |
| Ranging Frequency | 1~10 Hz | |
| Ranging Accuracy | ±2m | |
| Range Resolution | ≤20m | |
| Precision Rate | ≥98% | |
| False Alarm Rate | ≤1% | |
| Number of multi-target detections | Up to 3 targets | |
| Electrical Interface | A1257WR-S-6P | |
| Supply Voltage | DC 4.5~16 V | |
| Standby power consumption | ≤1 mW |
| Average power consumption | ≤2.5 W@10 Hz |
| Peak Power Consumption | ≤7 W @12 V |
| Weight | ≤32±1g |
| Dimension (LxWxH) | 48mmx30.5mmx21; mm |
| Operating Temperature | -40~+70℃ |
| Storage Temperature | -55~+75℃ |
| Impact Resistance | 1200 g/1 ms (GJB150.16A-2009) |
| Anti-vibration | 5~50~5Hz,1 Octave range/min,2.5g |
| Ranging Logic | First and last target, multi-target ranging, distance selectivity |
| Activation Time | ≤950 ms |
| Data Interface | UART (TTL_3.3V) |
| Electrical isolation | Isolation of power ground, communication ground and structure ground |
| Reliability | MTBF≥1500h |
| Optical axis stability | ≤0.05 mrad |
| Non-parallelism between optical axis and mounting surface | ≤0.5 mrad |
| Protection Class | IP67 |
| ESD Class | (Lens position) Contact discharge 6kV Air discharge 8kV |
| Electromagnetic Compatibility (EMC) | CE/FCC Certification |
| Eco-friendly | RoHS2.0 |
