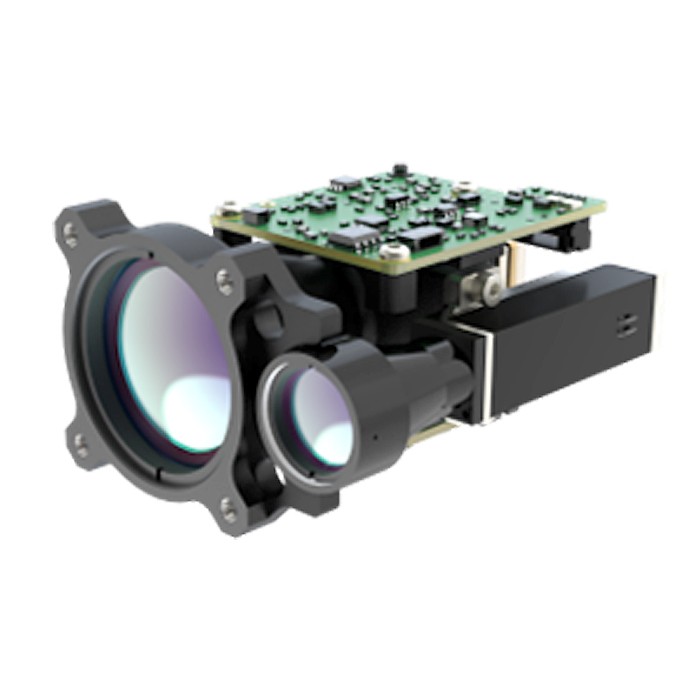

8KM Eye-safe Laser Ranging Module 8000M
LR8000 eye-safe ranging module is developed based on 1535nm erbuim-glass laser
independently devoloped by our company. It belongs to level Ⅰ eye-safe product. The
product adpots monopulse ranging, the maximum range is up to 10km. Support
UART(TTL_3.3V), provide upper computer software, Specifies the set and communication
protocol. The advantages are stable operation functions, small size and light weight.
| Poject | Parameter |
| Eye safety | Class1/1M |
| Wavelength | 1535±5nm |
| Max range | Huge target≥10000m; Car target≥8000m; Humanoid target≥4500m; UAV target≥2600m" |
| Mini range | 20m |
| Accuracy | ±1m |
| Optical aperature | Φ25mm |
| Divergence | ~0.30mrad |
| Receive FOV | 4.21mrad |
| Dimention(LxWxH) | ≤65x48x32mm |
| Weight | 58±1g |
| Frequency | 1~10 Hz |
| Resolution | 30m |
| Detection probability | ≥98% |
| False alarm rate | ≤1% |
| Multi-target detection | Up to 3 targets |
| Communication interface | UART(TTL_3.3V) |
| Supply | DC 4.5~16 V |
| Standby power consumption | 1 mW (Module off, POWER_ON<0.3V) ≤2 W (Module on, POWER_ON>2.7V) |
| Start-up power | ≤14W2) |
| consumption | |
| Peak power consumption | ≤10W2) |
| Operation temperature | -40~+70℃ |
| Storage temperature | -55~+75 ℃ |
| Vibration | 0.01~0.04 g2/Hz,20~2000Hz |
| Mechanical Shock | 75g,6ms |
