Product Description

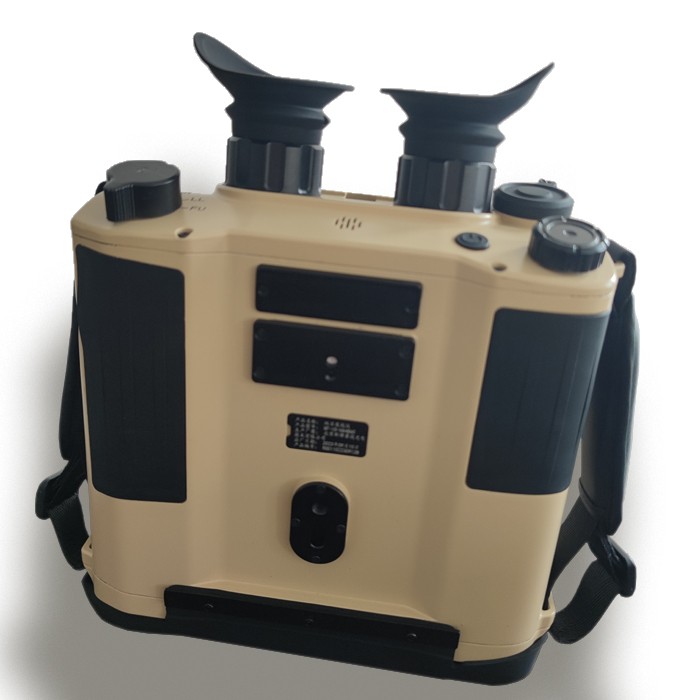

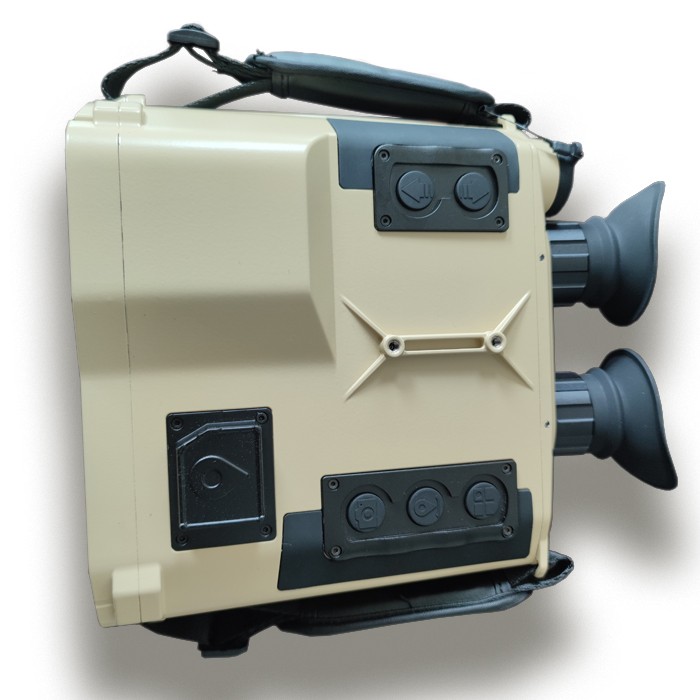

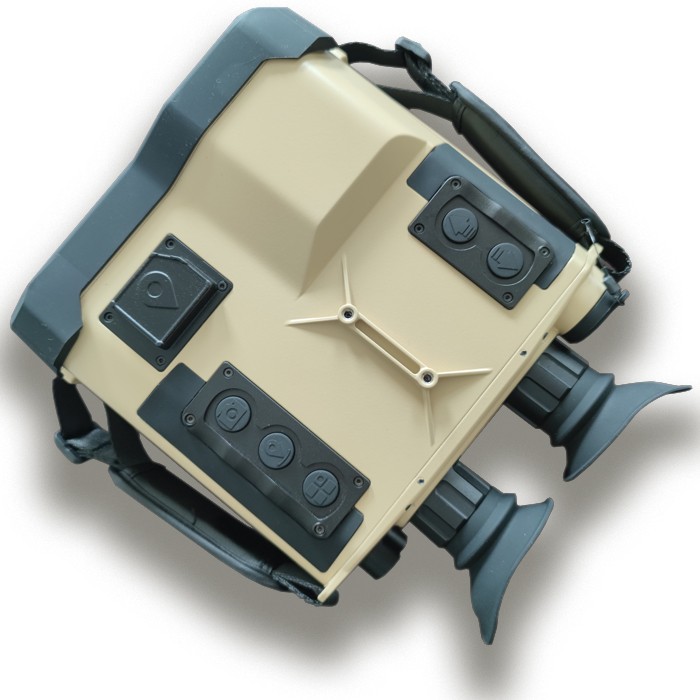

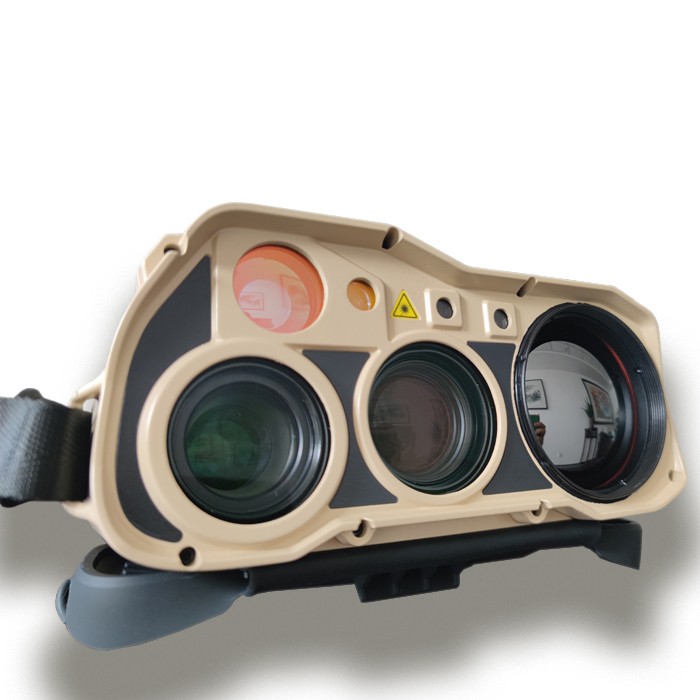

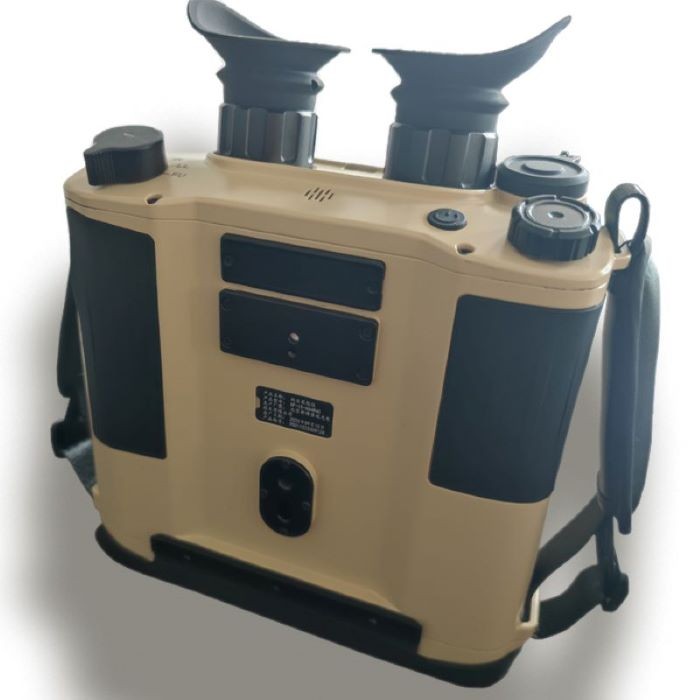

IR102-Z integrates infrared, low-light, visible light and laser. It is a small coaxial intelligent observation device with built-in composite positioning module, high-precision digital electronic compass, ultra-long-distance laser ranging and all-in-one weather sensing. The module has multi-spectral fusion functions and can be used for all-weather target positioning, reconnaissance, indication, ballistic calculation, photography and video recording, and has rich interfaces to build IoT.
Specifications
Thermal Channel | |
Resolution | 640x512, 12μm |
Spectral Band | 12μm |
FOV | 7.32°x5.86 |
Color Day Channel | |
Resolution | 4.6 megapixels |
FOV | 4.6°x3.7° |
Low Light Level Channel | |
Resolution | 1920x1080 |
FOV | 44°*34°(W)~2.4°*1.8°(T) |
Laser Rangefinder | |
Eye Safe | 1535nm |
Max Measuring Range | ≥6km(vehicle) |
Measuring Accuracy | 2m |
Location Module | |
Location Mode | BD+GPS/GLONASS |
Horizontal Location Accuracy (CEP) | 5m |
Elevation Location Accuracy (PE) | 10m |
Digital Magnetic Compass | |
Azimuth Measurement Range | 0°~360° |
Azimuth Measurement Accuracy | 0.5°(RMS) |
Pitch Angle Measurement Range | -90°~+90° |
Pitch Angle Measurement Accuracy | 0.4°(RMS) |
Inclination Angle Measurement Range | -180°~+180° |
Inclination Angle Measurement Accuracy | 1°(RMS) |
Laser Pointer | |
Wavelength | 850nm |
Security level | Class IIIA |
Display | 1280x1024 OLED |
Storage | 10000 JPG&4h AVI |
Ocular Lens Diopter | -4~+4 |
Weight | ≤2.1kg(With Battery) |
Operating Time | ≥8h |
Dimension | 198x210x105mm |
Interface | External Power Supply/USB/PAL/RS232, HDMI, WIFI |
Operating Temperature | -40℃~+55℃ |
Encapsulation | IP67 |
Detecting Distance | |
Human | 5000M |
Vehicle | 6000M |
Recognition Distance | |
Human | 1700M |
Vehicle | 2400M |
Identification Distance | |
Human | 850M |
Vehicle | 1200M |
