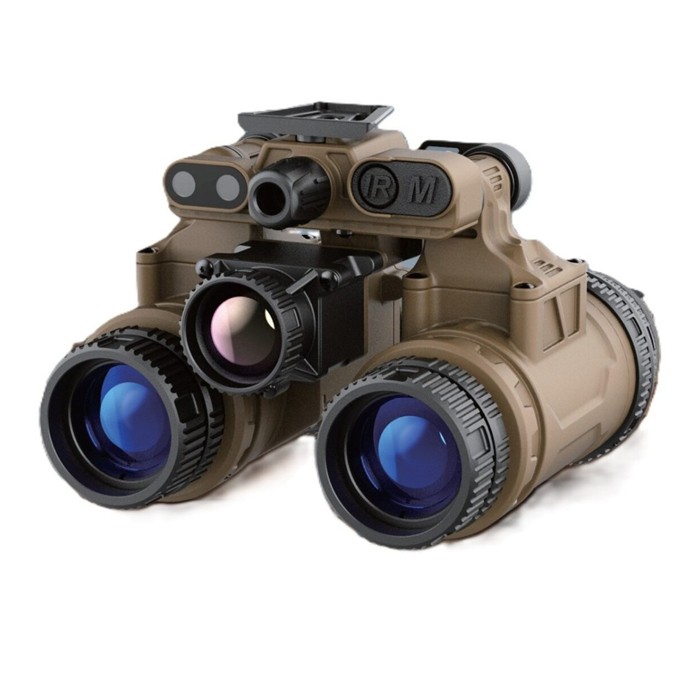

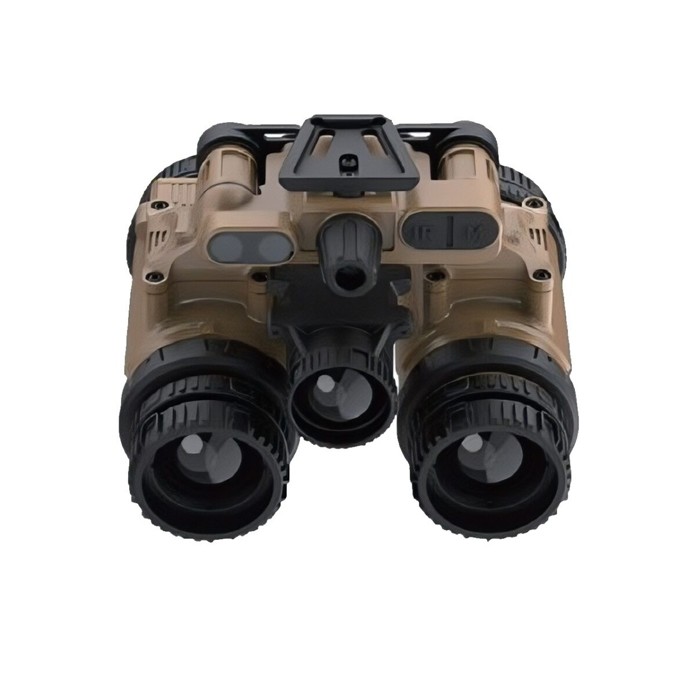

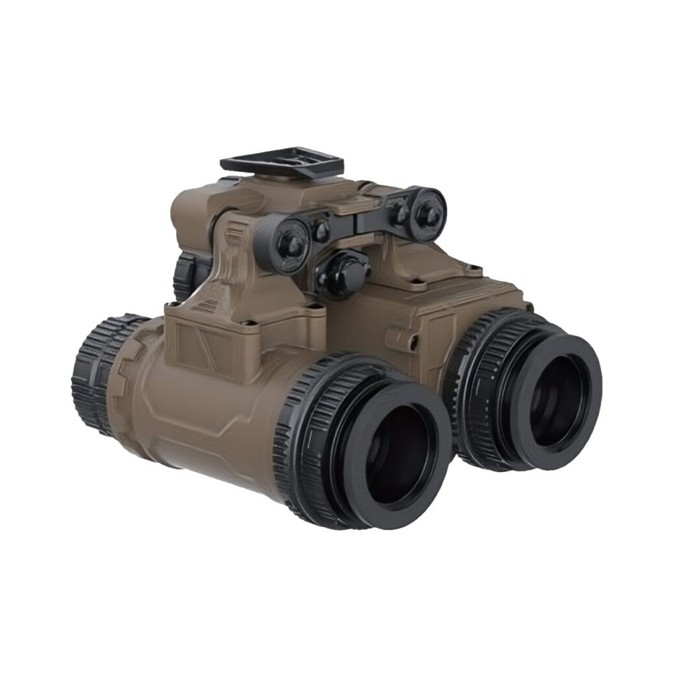

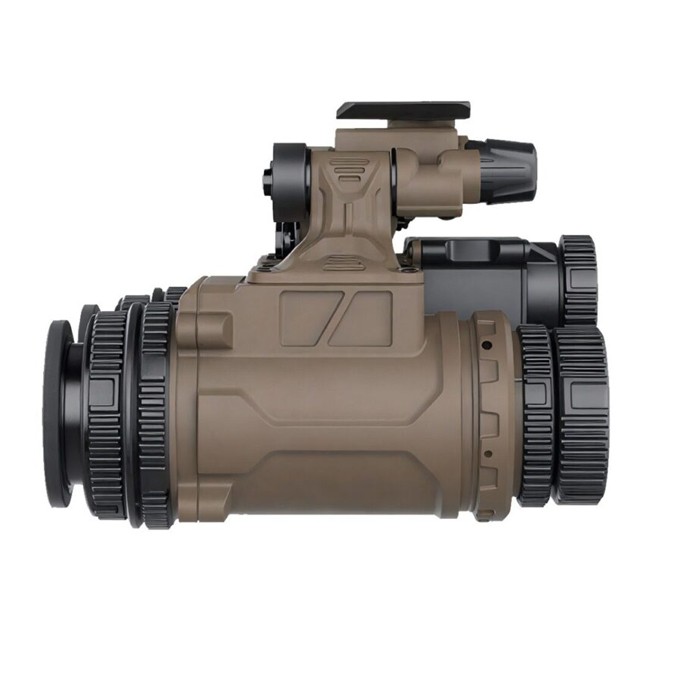

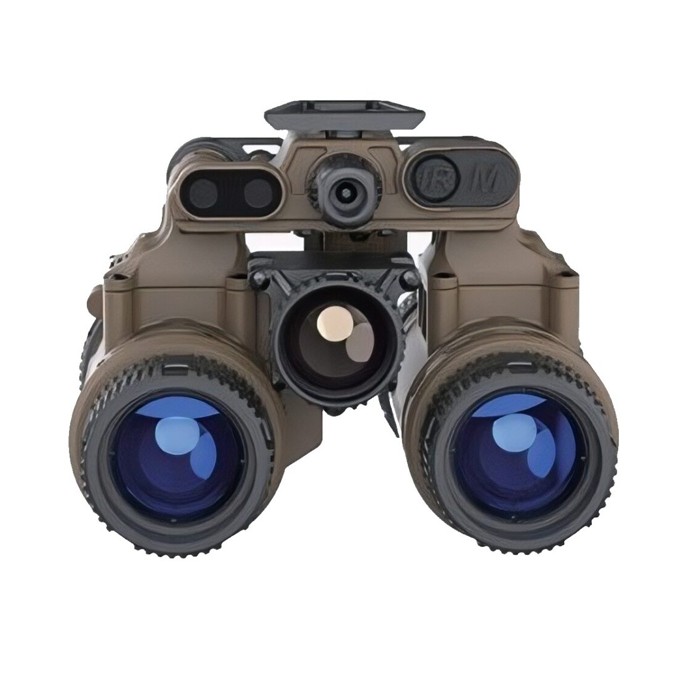

ELF-FB 20 is a brand-new enhanced night vision binocular goggles. Compared with the previous generation, it delivers significant improvements in image tube compatibility, low-light & infrared imaging quality, fusion recognition algorithms, and overall size and weight. This product aims to provide users with better night vision performance and threat recognition capabilities, ensuring mission success and user safety.
Dual-band night vision fusion imaging, improving rapid perception capabilities
Upgraded night vision imaging, delivering lower distortion and reduced chromatic aberration.
Low-latency infrared imaging, reducing latency by 33% compared with the previous generation.
Brand-new fusion image algorithm, ensuring more precise target recognition.
Miniaturized and lightweight design, improving wearing comfort
Features a redesigned optical-mechanical structure, with the
overall size reduced and the weight lowered to 550 g, minimizing
the wearing fatigue during extended use.
Comprehensive protection features
Equipped with high light protection, flip-up for power-off, and power-off by side-turning the support.
Enhanced image tube compatibility
Supports and allows selection from multiple models of mainstream 18mm GEN2+ and GEN3 image tubes (MX10160 and MX11769), offering greater flexibility and easier replacement.
| Model | ELF-FB 20 | |
| Infrared Specifications | Detector | 640x512,12μm |
| Infrared FOV | 24°x20° | |
| Fusion Image Mode | Highlight.outline | |
| Night Vision Specifications | Magnification | 1x |
| Focal Length Range | 250mm~+00 | |
| Focal Length | 27mm | |
| Focal Length Adjustment | Manual | |
| Night Vison FOV | 40° | |
| FOM | 1400/1600/1800/2000 (optional) | |
| Image Intensifier Tubes Compatibility | 10160\11769 | |
| Exit Pupil Distance | 25mm | |
| Interpupillary Distance Adjustment Range | 55-72mm | |
| Diopter Adjustment | -4D~+2D | |
| Gain Adjustment | ✓ | |
| Overall Information | Screen Display | 1280*1024(OLED) |
| Digital Magnetic Compass | Built-in | |
| GPS Location | ✓ | |
| High Light Protection | ✓ | |
| Automatic Power-off | Individual pod shut off | |
| Battery Specification | 2x18650(battery holder) | |
| Battery Life | 8h (fusion)/80h (night vison) | |
| Mounting Interface | L4G24 | |
| Dimensions | 105x110x87mm | |
| Weight | 530g | |
| Operating Temperature | -40℃~+50℃ | |
| Ingress Protection Rating | IP67 | |
