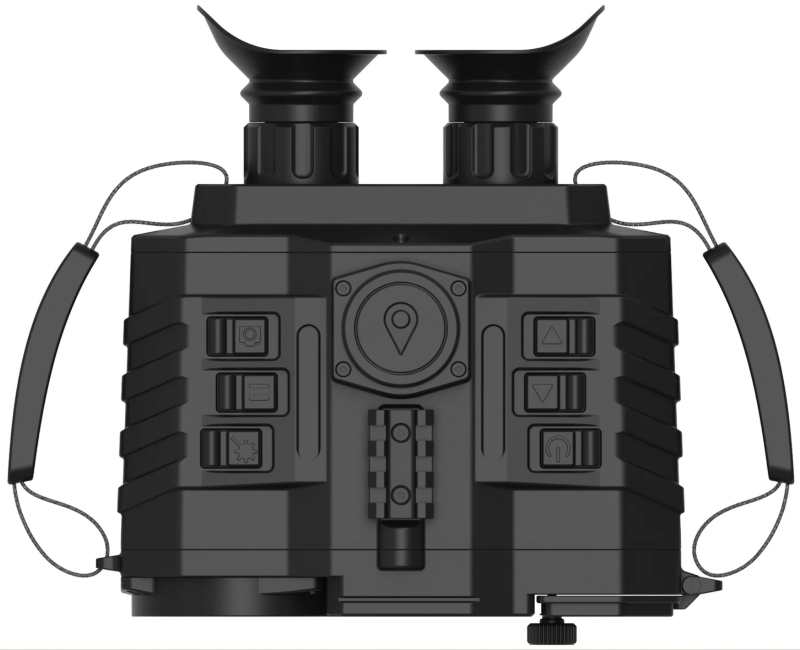

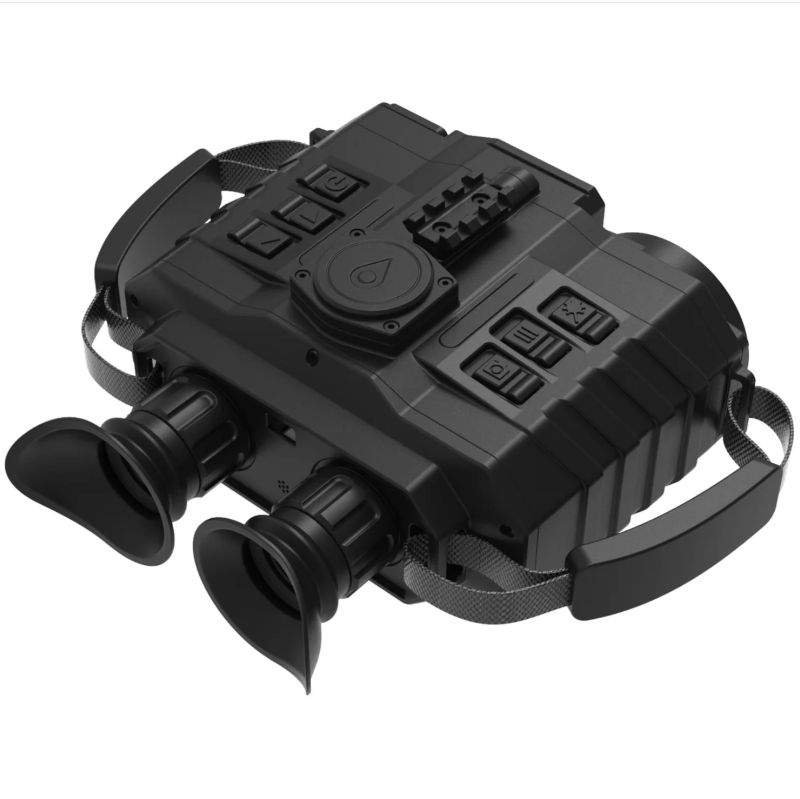

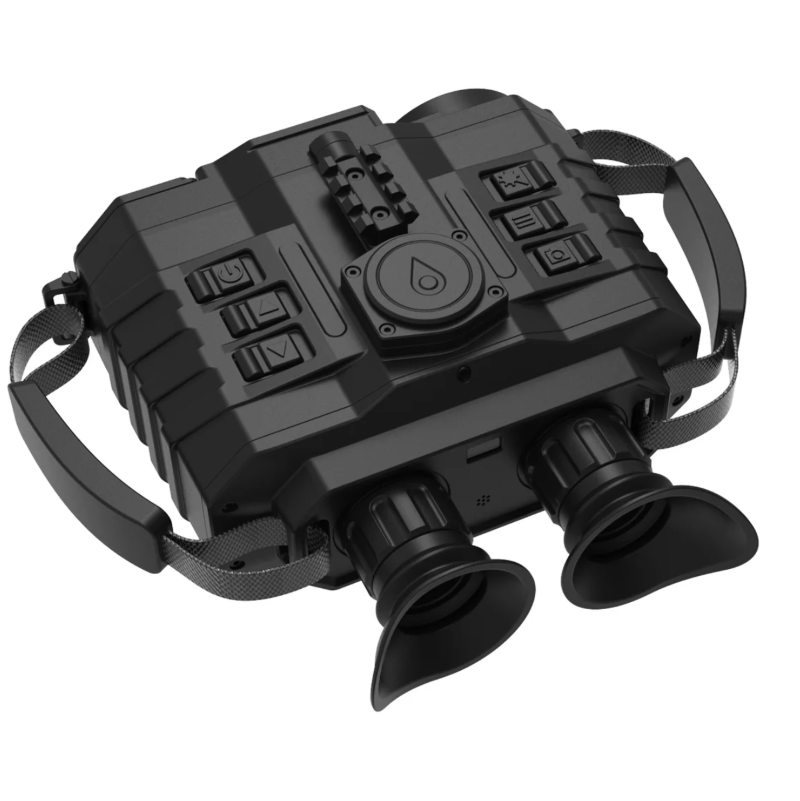

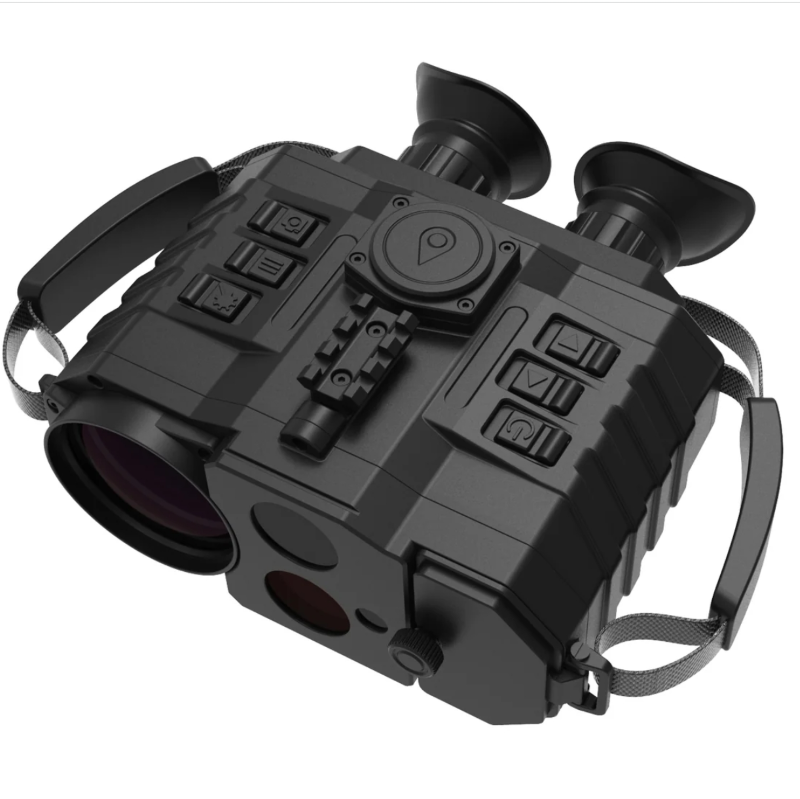

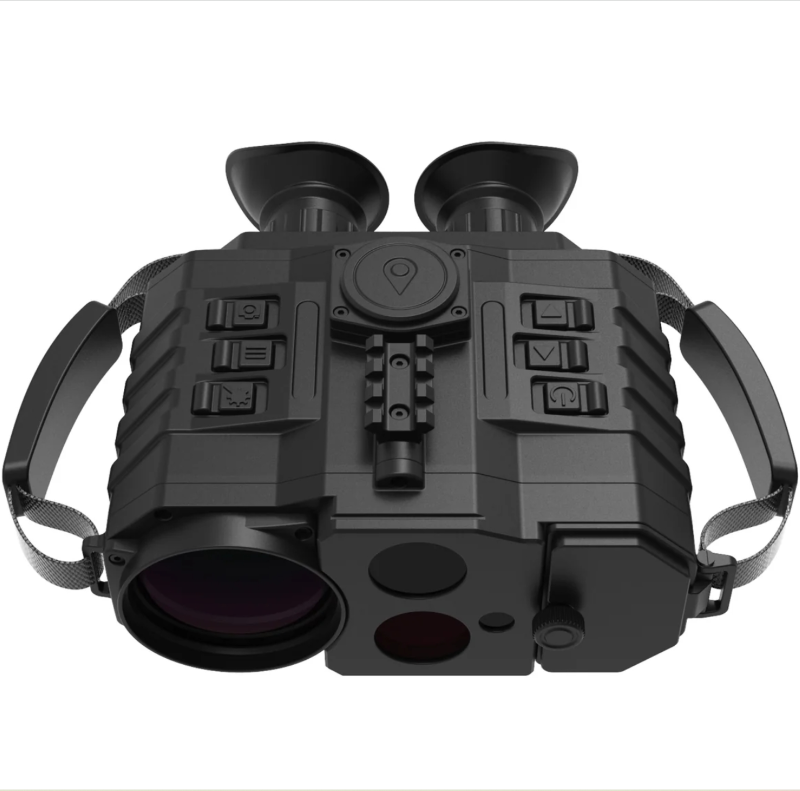

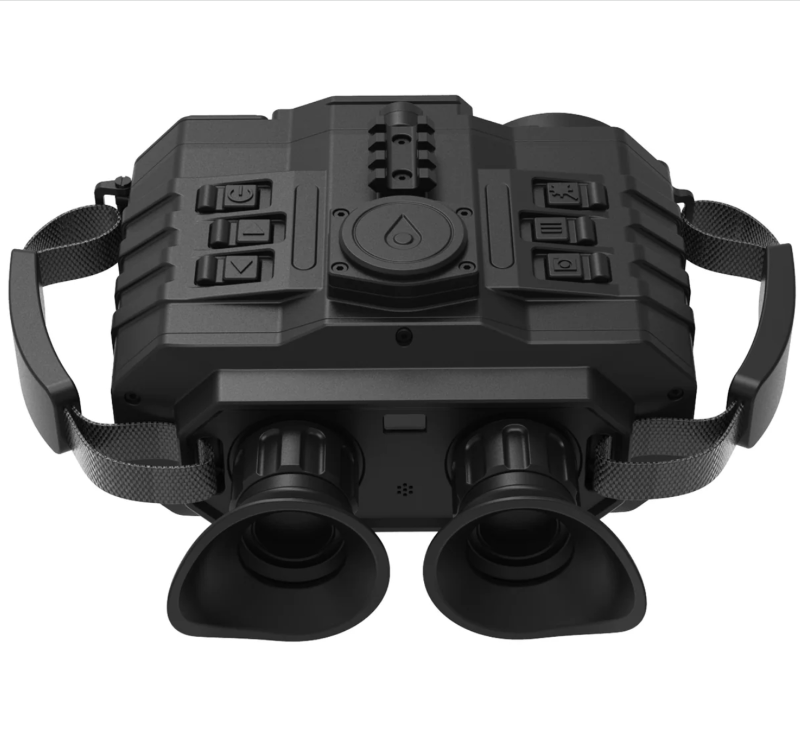

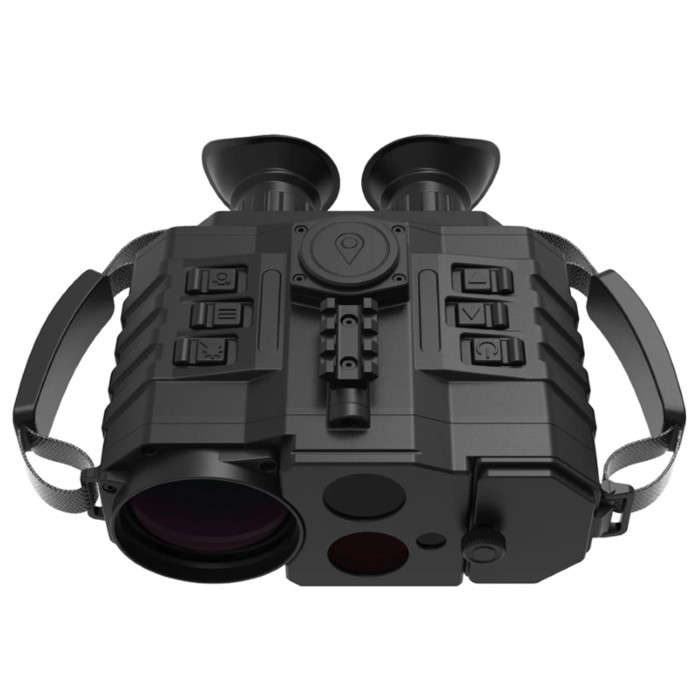

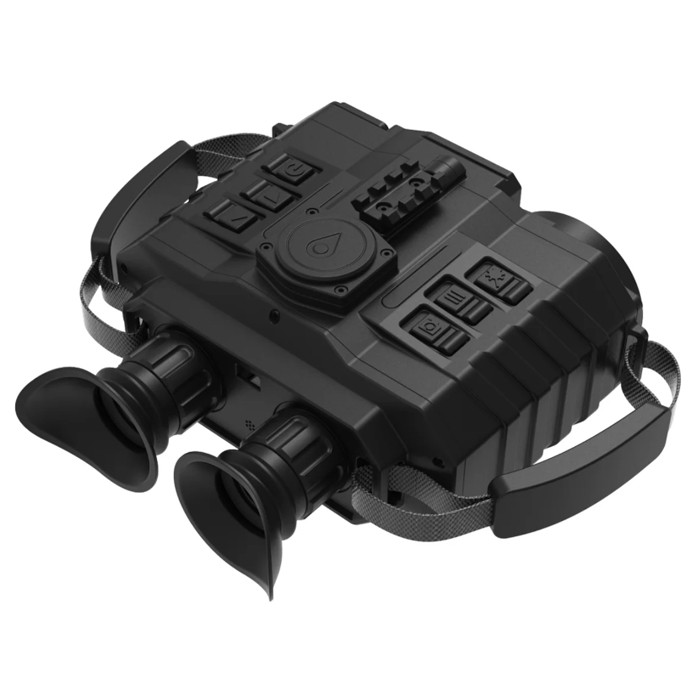

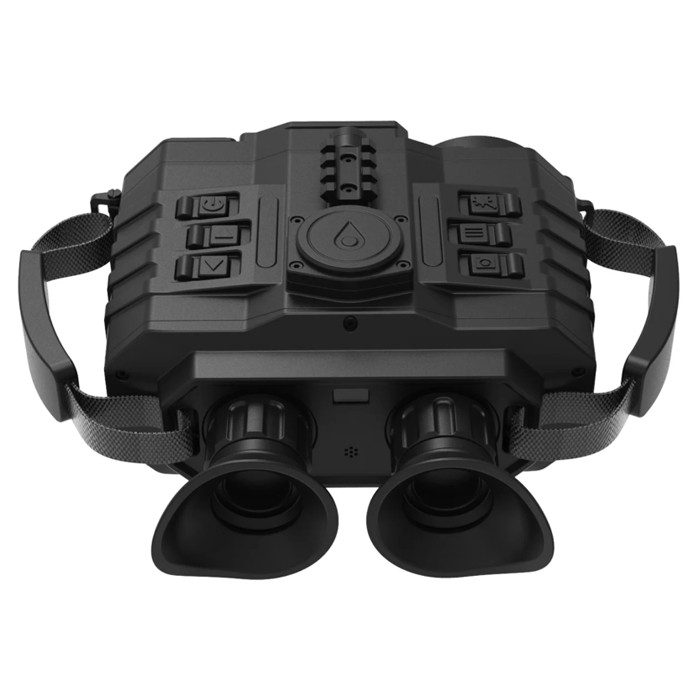

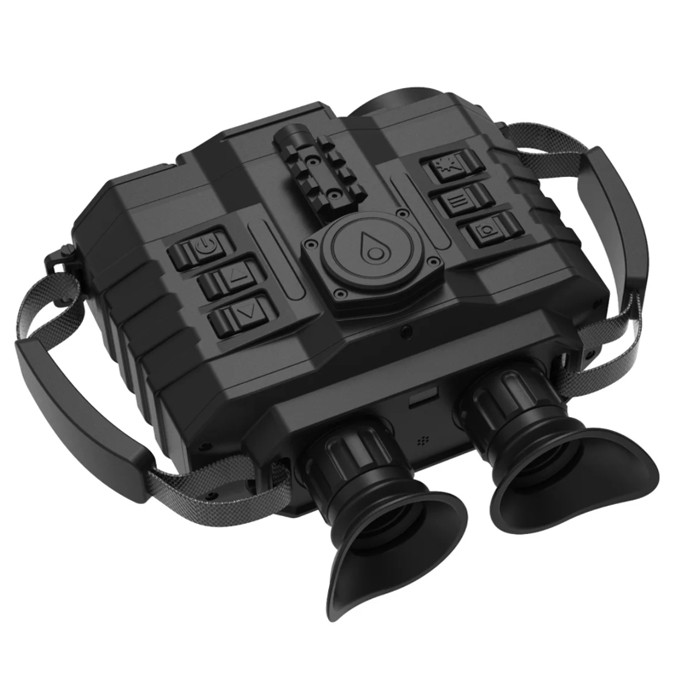

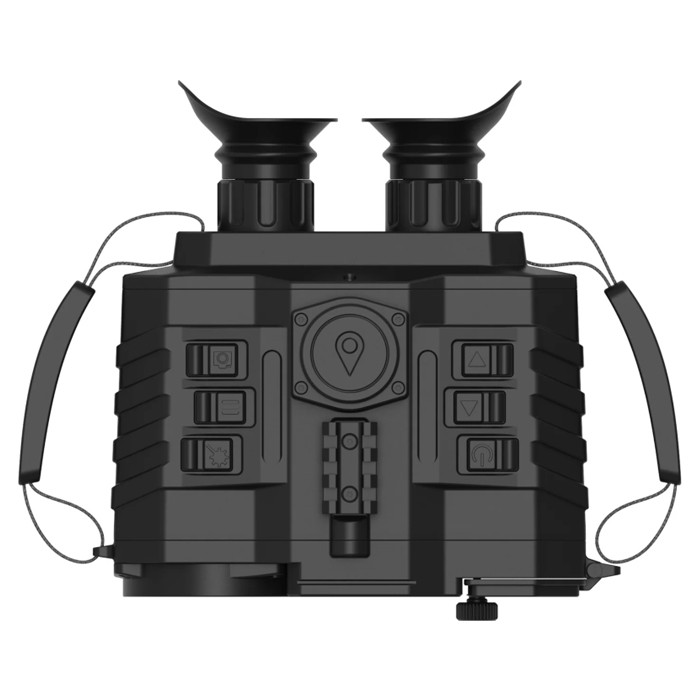

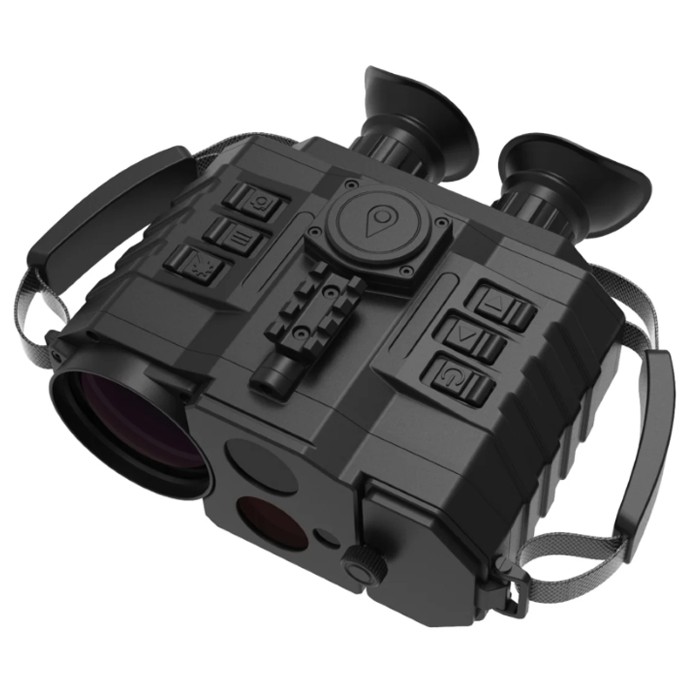

Dual vision binocular,featuring its fusion of infrared and visible light, can be used day and night for target detecting,discovering.
| PT-F | ||
| Detector | Infrared | Visual |
| 640x512/12μm | 2594x1944/2.7μm | |
| Recognization of human | 1500m | 4000m |
| Recognization of vehicle | 2500m | 6000m |
| Frame rate | 50Hz | 30Hz |
| FOV | 6°x4.5° | 4.6°x3.5° |
| Vision mode | Thermal、Visual | |
| Diopter | -4~4 | |
| LRF | Distanse: 50m~6000m | |
| Location | BD2_B1 and GPS_L1 | |
| Digital compass | Position: 0~360° Pitch: ±90° | |
| Battery life | ≥6h | |
| Battery | 4x18650 | |
| Weight | ≤1900g | |
| Dimension (mm) | 200x196x97 | |
| IP rating | IP67 | |
| Operating temperature | -40℃~55℃ | |
