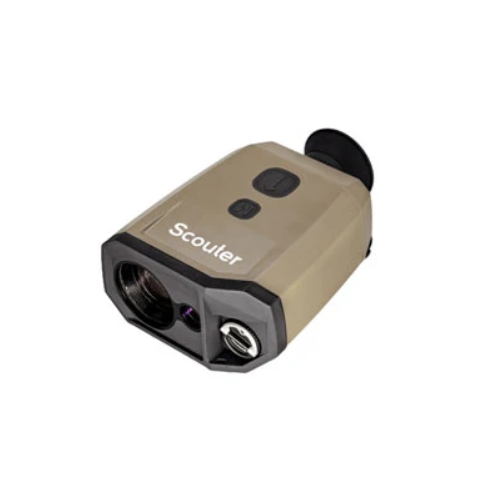

A pocket laser rangfinder that can measure the height of Mount Everest
The main functions of Scouter series Pocket Laser Rangfinder include: ranging, ranging the distance between two targets, angle measurement, real-time display of measurement data in the eyepiece, power display, data transmission and other functions(Support extended GPS/Bluetooth/Wi-Fi module). It is mainly used for single-hand holding and equipped with tripod for long distance target. Besides, It is small size, lightweight and fitting easily into pocket.
| Product type | Scouter X | |
| OPTICS | ||
| Magnification | 7x | |
| Field of view | 6°/106mil | |
| Exit-pupil distance | 20mm | |
| Diopter | -5~+5D | |
| RANGEFINDER | ||
| Laser type | 1535nm | |
| range | 30~10000m | |
| Accuracy | ±1m | |
| Angle range | Azimuth: 0~360°; Inclination: ±90° | |
| Divergence | 0.4mrad | |
| Detection | ≥98% | |
| Ranging frequency | 1Hz | |
| ELECTRICAL | ||
| Power supply | DC 6V | |
| Connector | Uart(TTL_3.3V) | |
| Number of repeated measurements (battery powered) | 5000 times | |
| Battery type | CR123Ax2 | |
| PHYSICAL | ||
| Dimensions (LxWxH) | 141x93x53mm | |
| Weight(incl. batteries) | 460g | |
| ENVIRONMENTAL | ||
| Op temperature | -40~+55℃ | |
| Sto temperature | -50~+65℃ | |
| IP rating | IP67 | |
