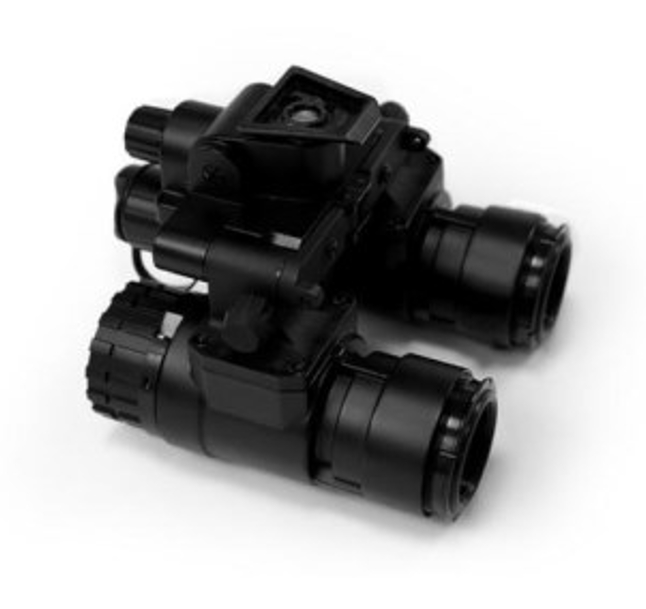

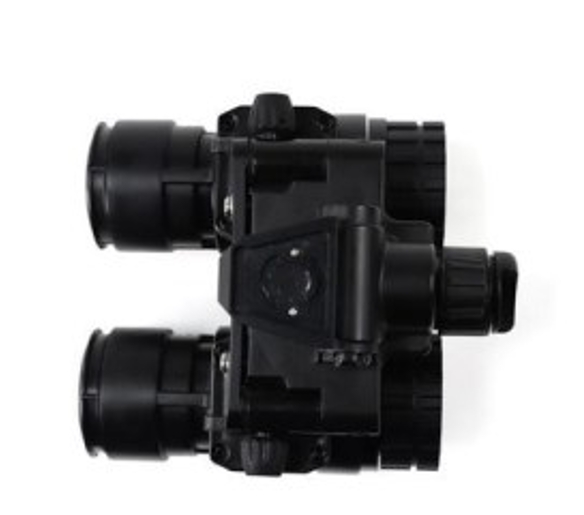

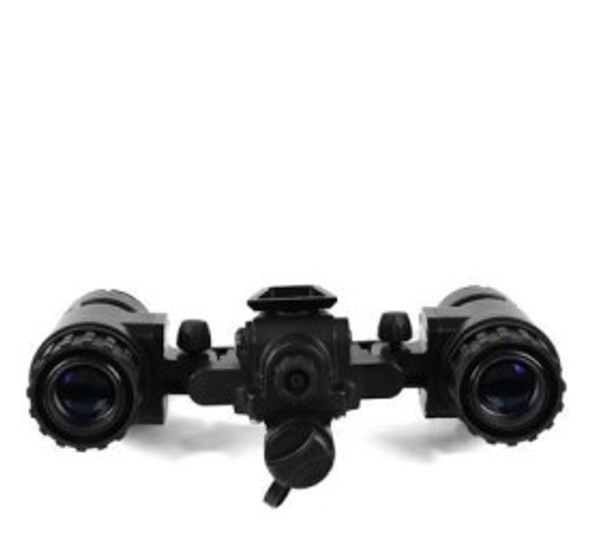

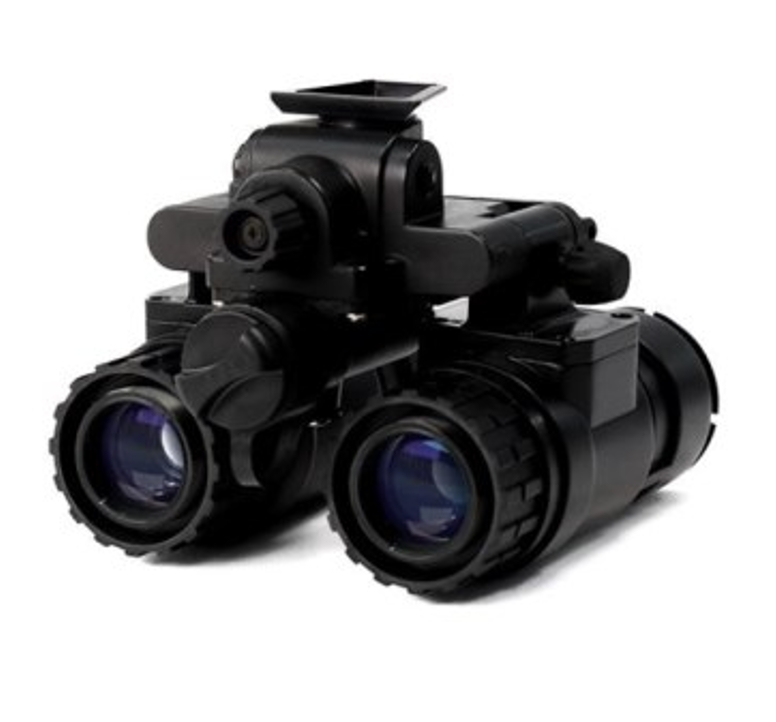

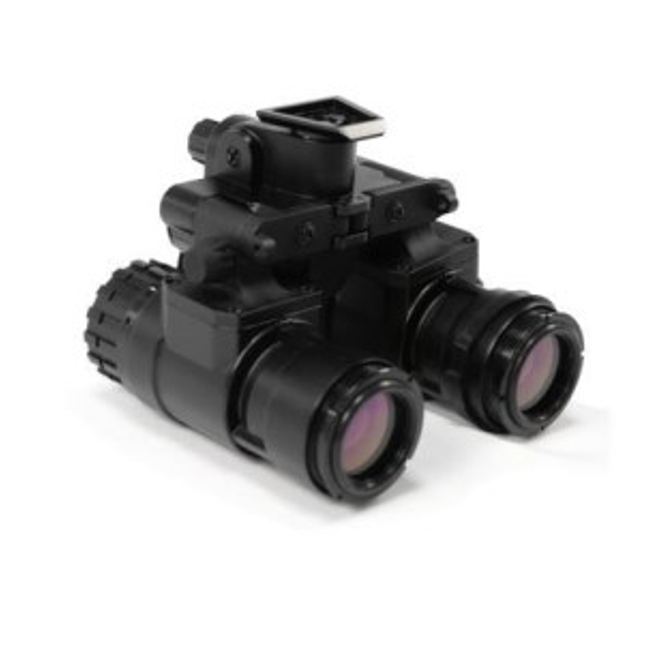

The YM-NV31A is a compact and lightweight night vision goggle. Equipped with two 36.75mm MX10160 Gen2+/Gen3 image intensifier tubes. It can be used with tactical helmet systems via the G24 series mount.
Product Features:
Lightweight ergonomic design reduces head-borne weight and decreases neck strain.
Optional diopter lenses optimize operator preference for visual acuity.
Automatic shutdown when retracted; restoration of power when unfolded.
Use of common AA battery power for easy replenishment.
Replaceable/upgradeable image intensifier tube assembly.
| Image Intensifier | Gen2+ Gen3 (optional) |
| Image color | |
| Green / White (optional) | |
| Resolution | 64lp/mm 68lp/mm |
| Signal-to-noise ratio | 25 29 |
| Optical sensitivity | 850 1150 |
| Operational Life | ≥10000h |
| Automatic Brightness Control | Yes |
| Automatic High Light Cut-off | Yes |
| Built-In IR Illuminator | Yes/No |
| Optical parameters | |
| Optical Magnification | 1x±0.05x |
| Field of View | 40o Standard Version |
| Eyepiece Diopter | +5/-5 |
| Diopter lens configuration | Fixed |
| Focusing Range | 0.25m-Infinity |
| Pupil exit diameter | ≥26mm |
| Distance between pupils | ≥30mm |
| Optical glass coating | military multilayer coating standard, ultra wideband multilayer antireflection coating |
| Focusing method | Manual |
| Interpupillary Adjustment Range | 50-80mm |
| Electrical | |
| Flip-up shutdown | Yes/No |
| Control mode | OFF, ON, IR, AUTO |
| Battery Type | AA Battery |
| Continuous Working Hours | 25~100h |
| Physical | |
| Dimensions(mm) | 128x100x80mm |
| Weight | ≤490g |
| Operating Temperature Range -40℃~+60℃ Storage temperature -55℃~+70℃; Waterproof IP67 | |
