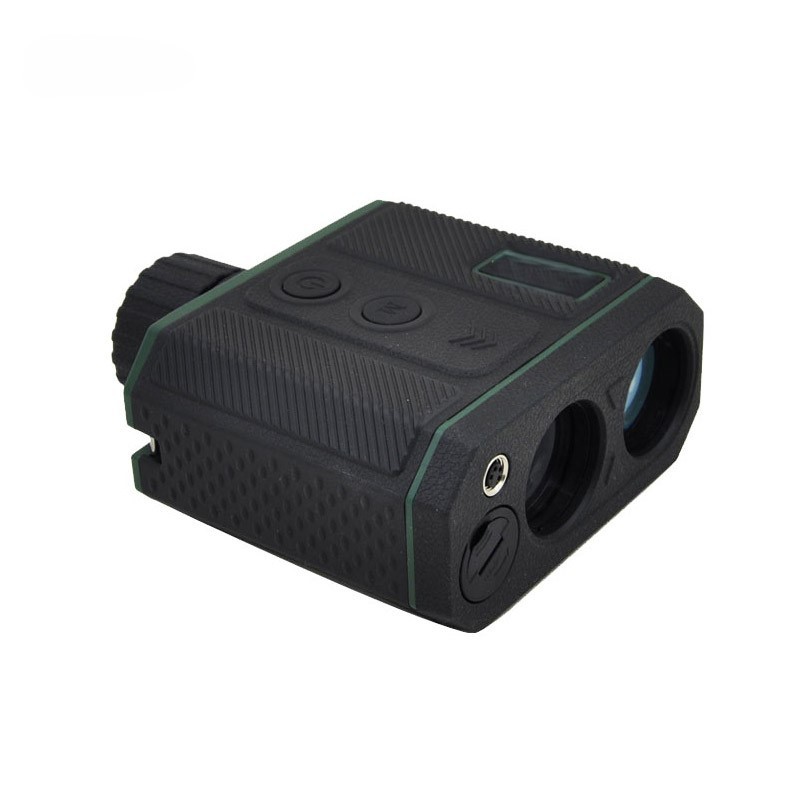

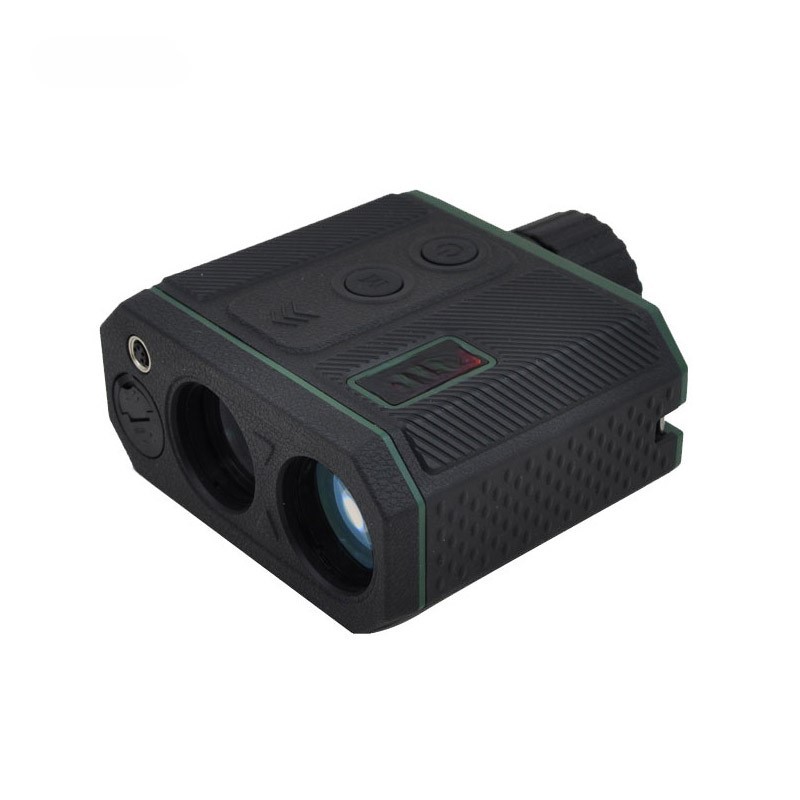

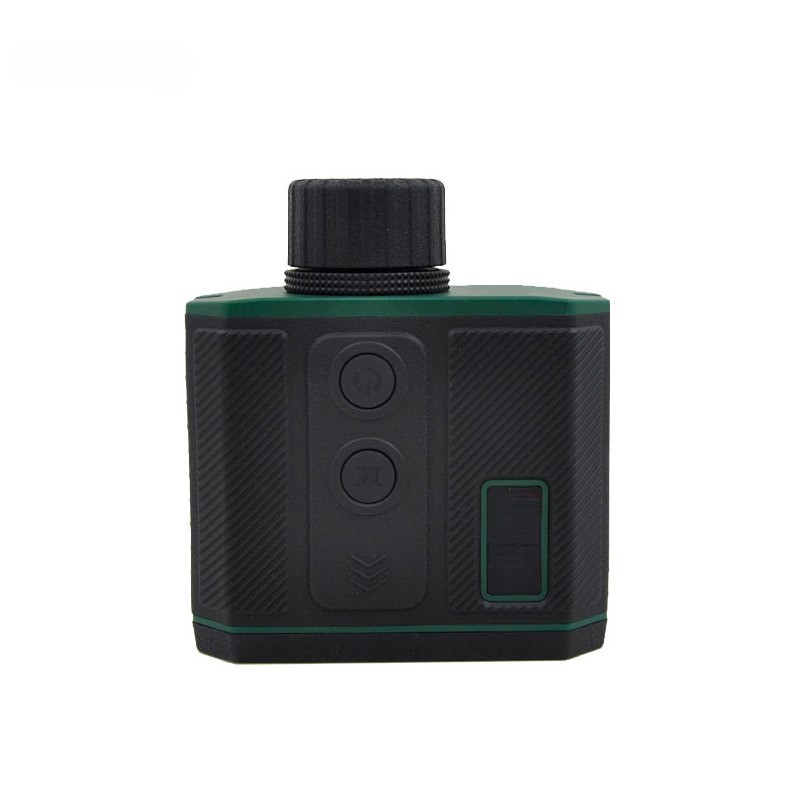

Distance measurement, height measurement, angle measurement, speed measurement, with GPS,
Temperature display
General target 0-3000 meters
High reflection 0-3500 meters
Accuracy 0.1 meters
Resolution 0.01 meters
| PROJECT | PARAMETER |
| Measurement range | Range:non-reflective targets 0-3000m Reflective Targets 0-3500m |
| Accuracy | ±0.1m(<400m) ±0.3m(400m-1000m) ±0.5m(1000m-2000m) ±1m(>2000m) |
| Inclination (INC) | range:±90°Accuracy:±0.1" |
| GPS accuracy | 3m-5m (depending on the location surrounding environment and location duration) |
| Span measurement | Measure span between two points vertically inward |
| Measurement mode | HD/SD VD VD ML HD ML HT HD HT GPS SPD TEP |
| Target mode | Scan, Line (C) and Far (F) modes |
| System settings | One-click to restore factory settings |
| Magnification | 8X |
| Ranging resolution | 0.01m |
| Measuring range | -45℃ to+125℃ |
| Bluetooth display | Have |
| Protection grade | IP65 |
| Laser wavelength | 905nm |
| Laser safety level | CLASS1(Level 1) |
| Optical material | BAK7 |
| Monitor | High transparency LCD |
| Company | Meters,yards, feet and degrees |
| Tripod | Standard camera tripod mounting hole 1/4"-20 female thread |
| Battery type | 1 section 18650-3.7V |
| Working hours | Continuous working for 20 hours |
| Supporting facilities | RXIRY Measurement APP |
| Size/weight | 128*114*54mm/456g |
| Other configurations | Built-in TTL (RS232 optional) serial port, horizontal grip operation, data storage function and at least 100 groups of data can be reserved |
