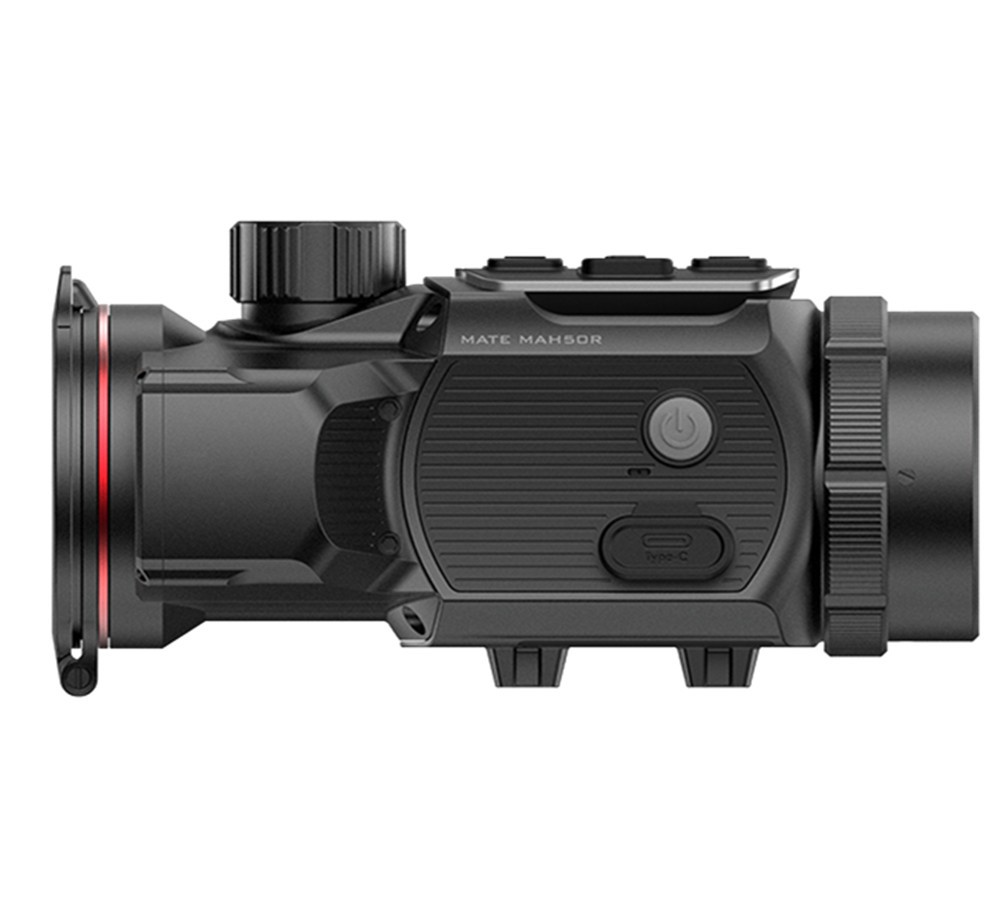

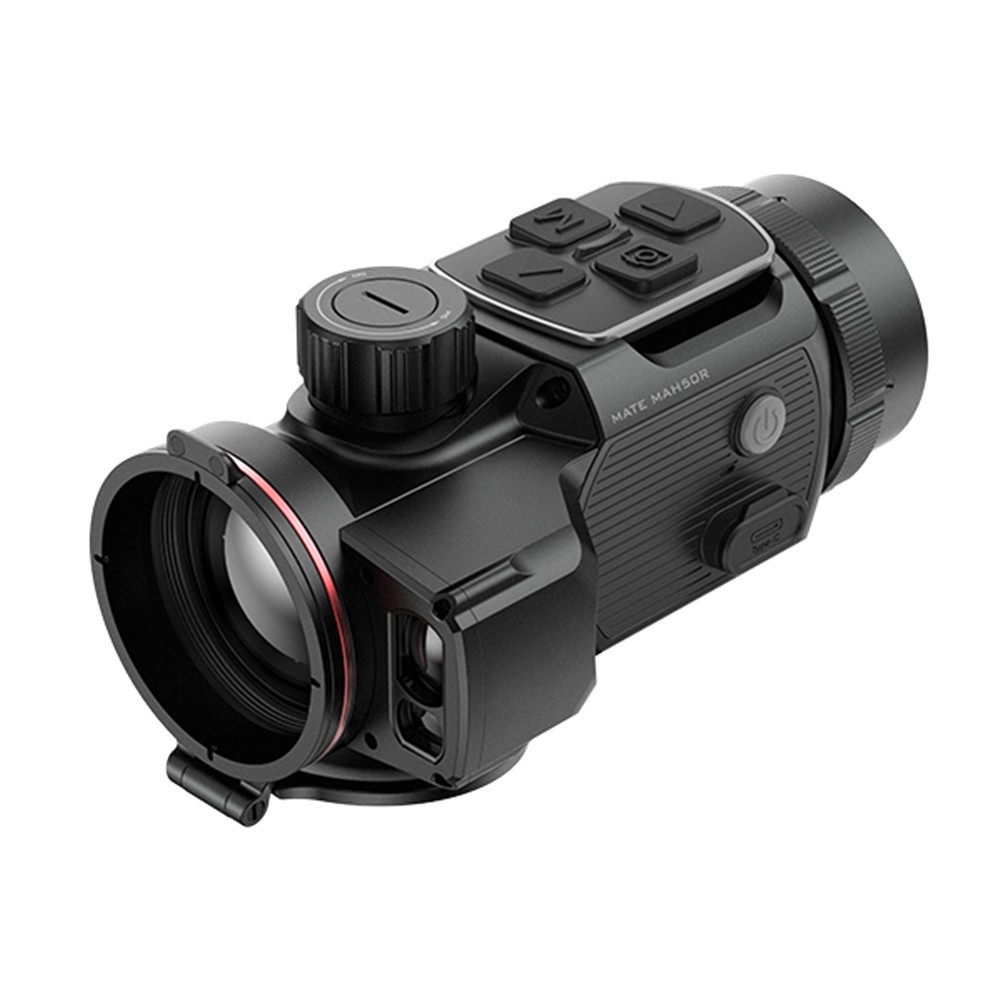

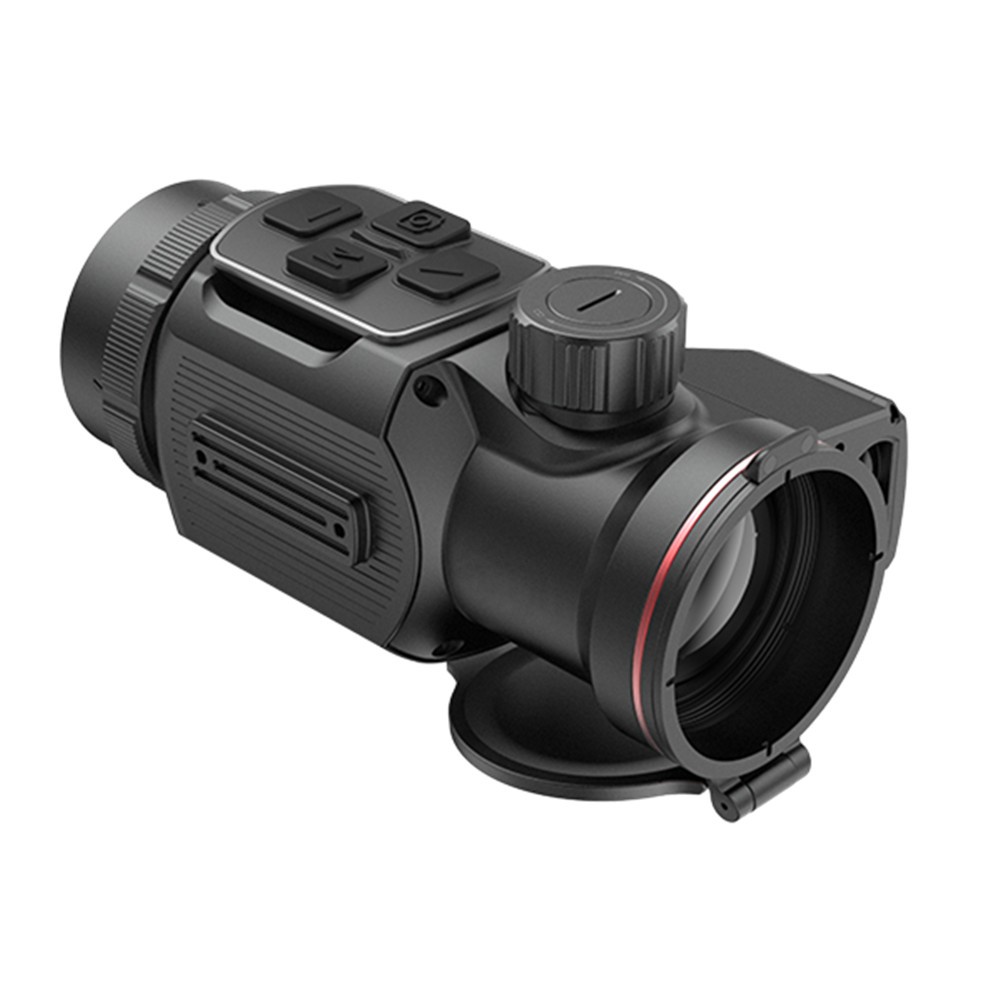

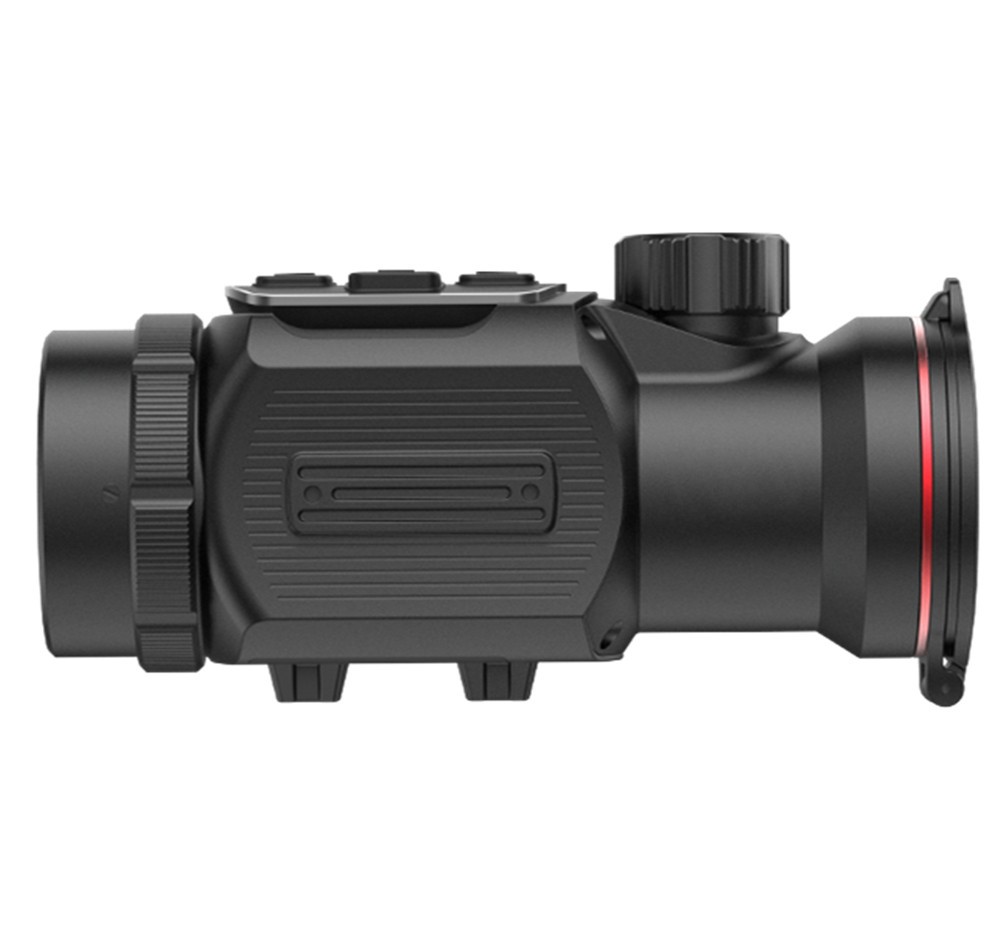

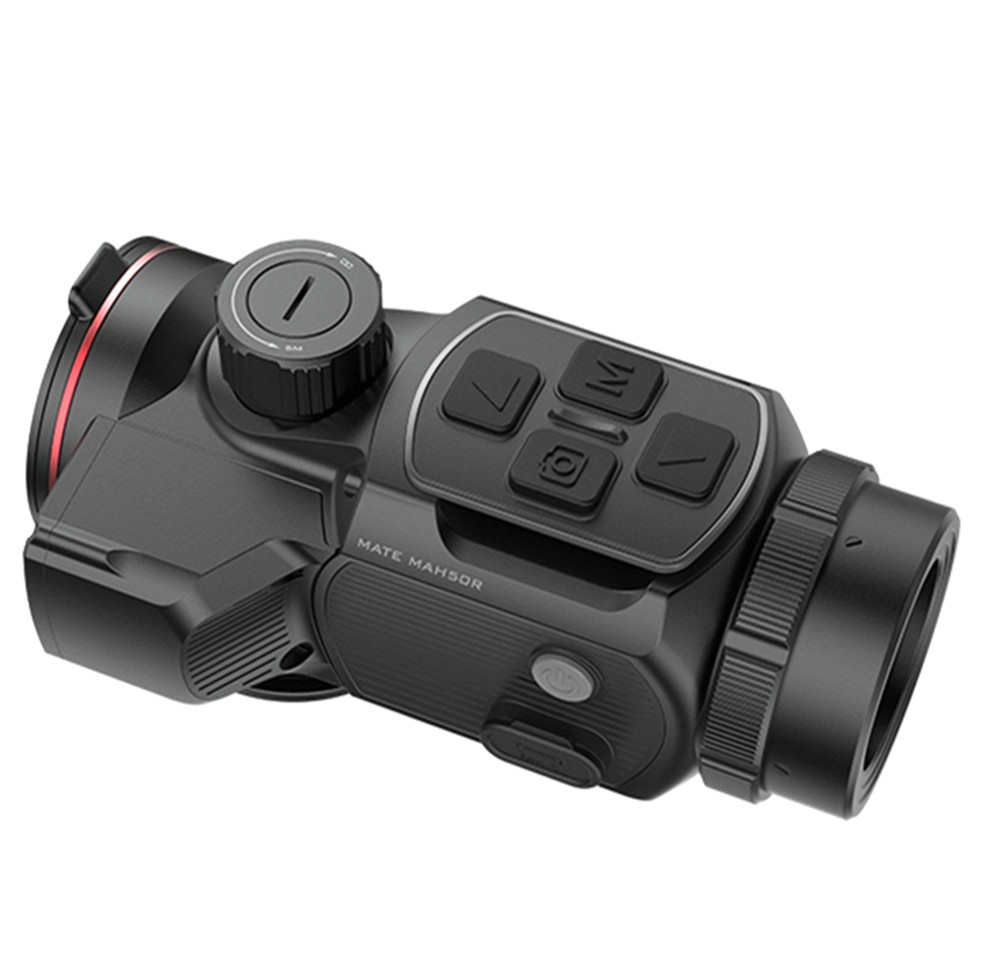

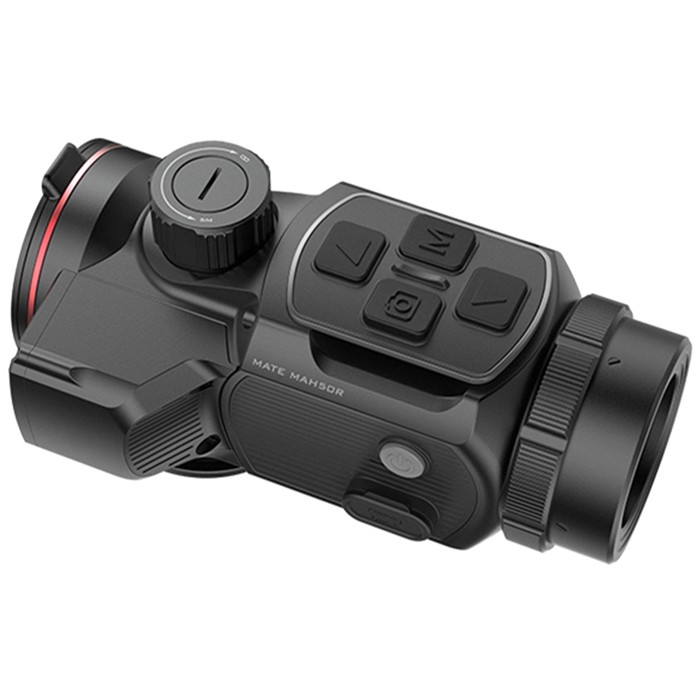

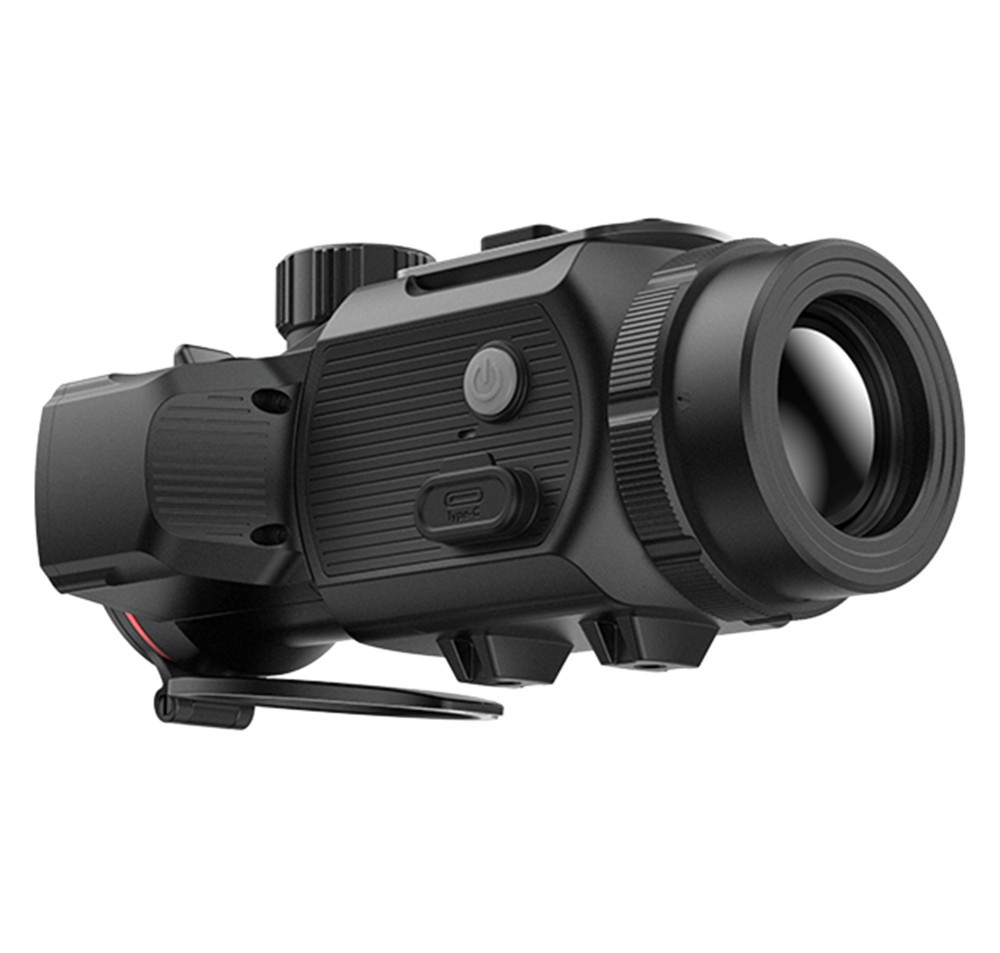

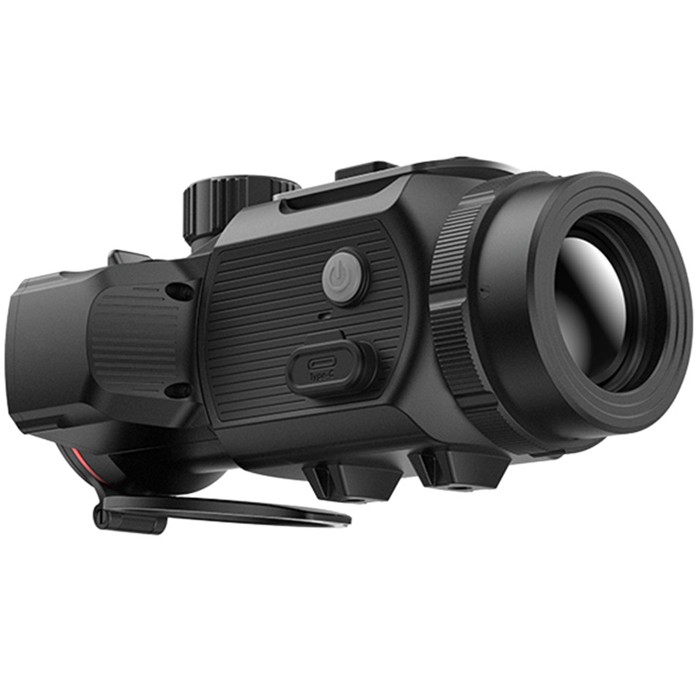

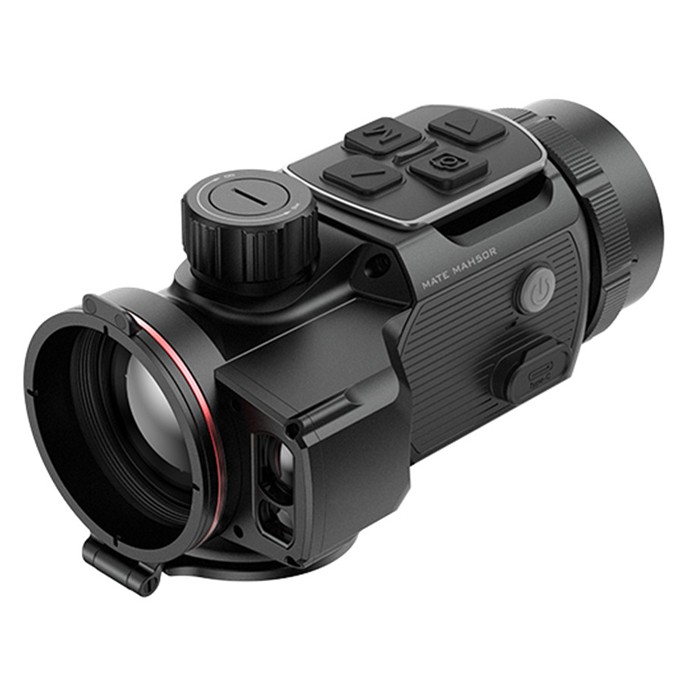

MAH50R Thermal Imaging Sight 640x512 Resolution 50mm Lens Thermal Clip-on
The new model is equipped with high-end proprietary thermal sensor (640*512 resolution, @12Hz, NETD≤18mk), providing users with crystal-clear therma imaging. It adapts to day scopes with up to 10× magnification while maintaining excellent image detail.
| Model | MAH50R |
| Thermal Sensor | 640*512@12μm |
| NETD,mK | ≤18 |
| Objective Lens,mm | 50 F1.1 |
| Field of View (HxV),° | 8.8x7.0 |
| Magnification,x | 1.0~4.0 |
| Detection Range,m(Target size: 1.7mx0.5m,P(n)=99%) | 2600 |
| Display | 1024x768 |
| Max.operating Time(22℃),h | 4+5 |
| Weight,g | 550 |
| Dimension,mm | 147x75x73 |
