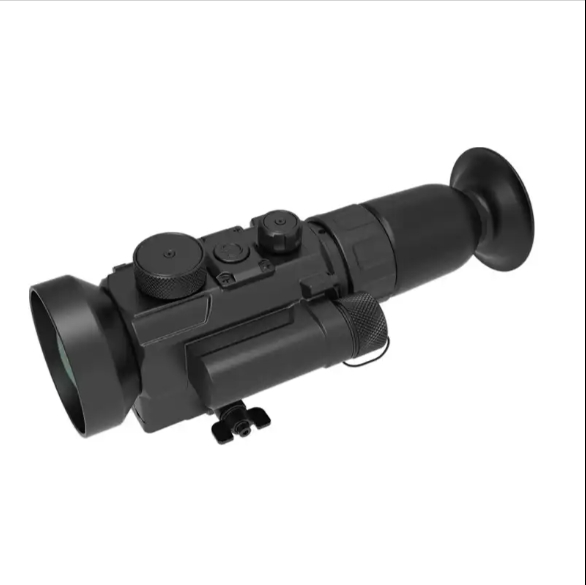

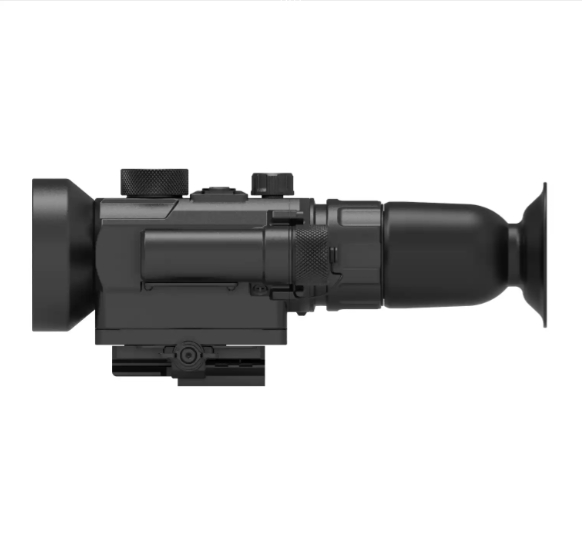

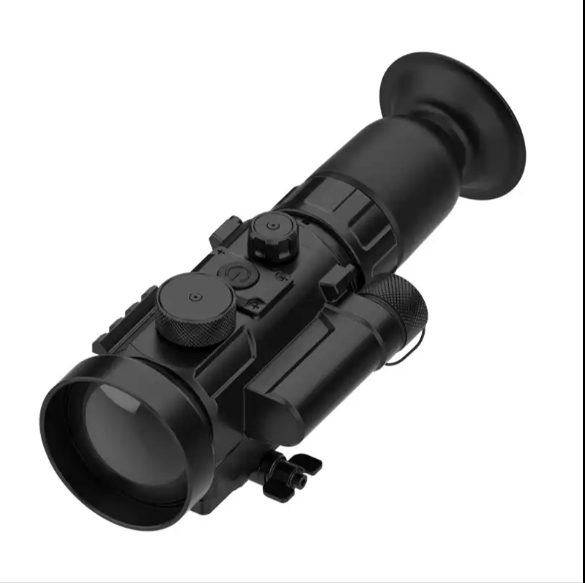

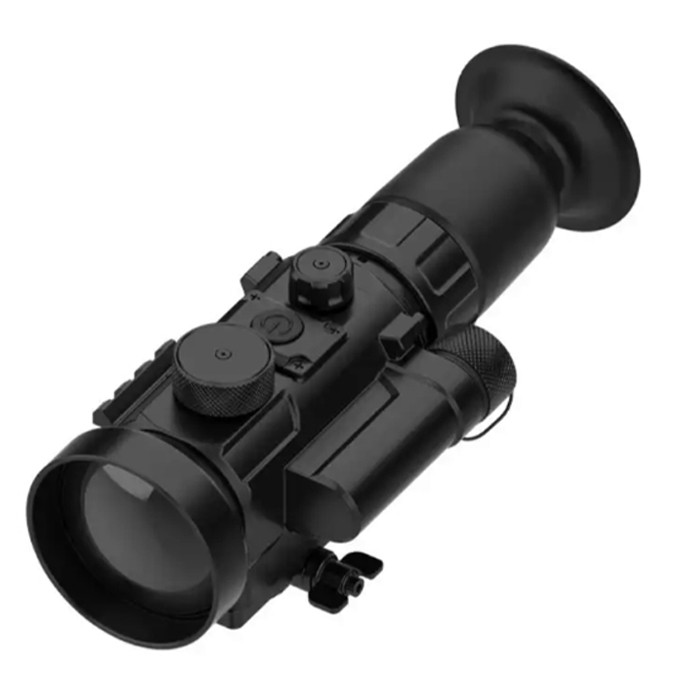

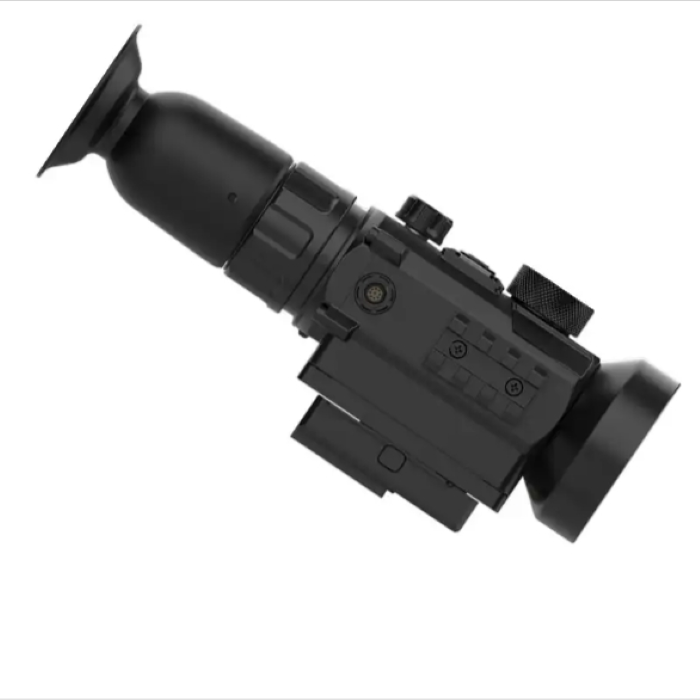

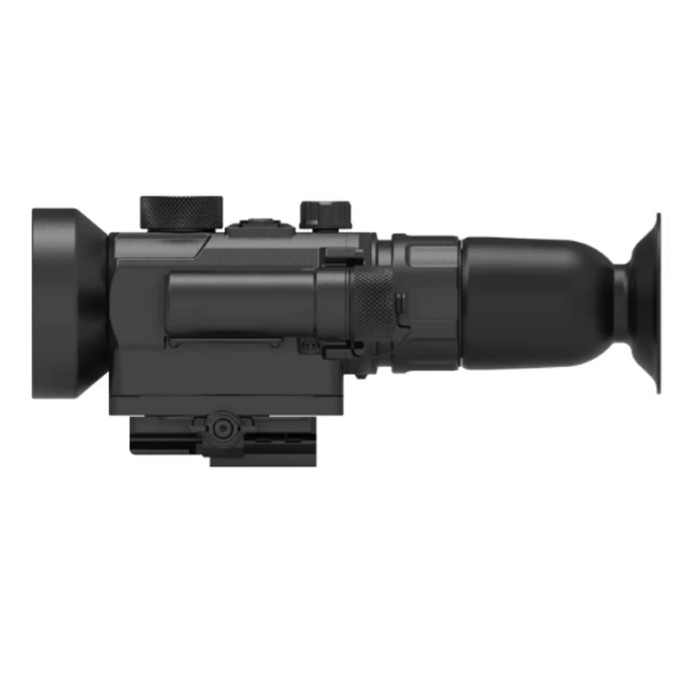

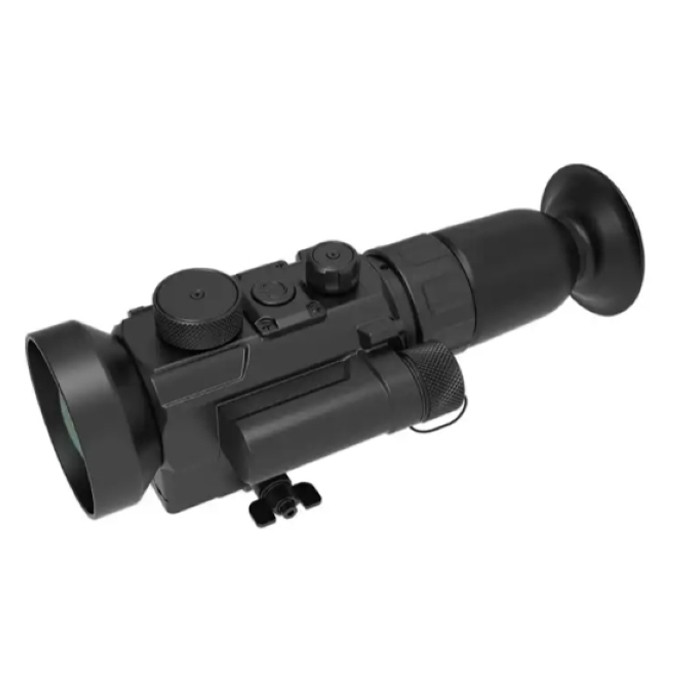

PSII-ZZr is an infrared thermal imaging sight that can be mounted on a variety of firearms for viewing,ranging and aiming at night and in adverse weather conditions.
| PS II-ZZr | |
| Detector | 640x512/12μm |
| Lens | f75mm |
| Recognization of human | 1770m |
| Recognization of vehicle | 3190m |
| NETD | ≤35mK |
| Frame rate | 50Hz |
| FOV | 5.8°x4.6° |
| Exit pupil diameter | ≥6mm |
| Exit pupil distance | ≥55mm |
| LRF | Distans 20m~3000m,±1m S 9. |
| Diopter | -4~4 |
| Picture mode | Black 、White、Color1、Color2 |
| Magnification | 4-31.9X |
| E-zoom | 1x、2x、4x、8x |
| Battery life | ≥4h |
| Mounting | Picatinny rail |
| Battery | 1x18650(≤Φ18x65 )mm |
| Weight | 1110g |
| Dimension | 220x120x90(mm) |
| IP rating | IP67 |
| Working temperature | -40℃~55℃ |
| Storage temperature | -55℃~70℃ |
| Applicable gun type | 12.7mm caliber and below |
| Impact force | 1600g/0.3ms |
