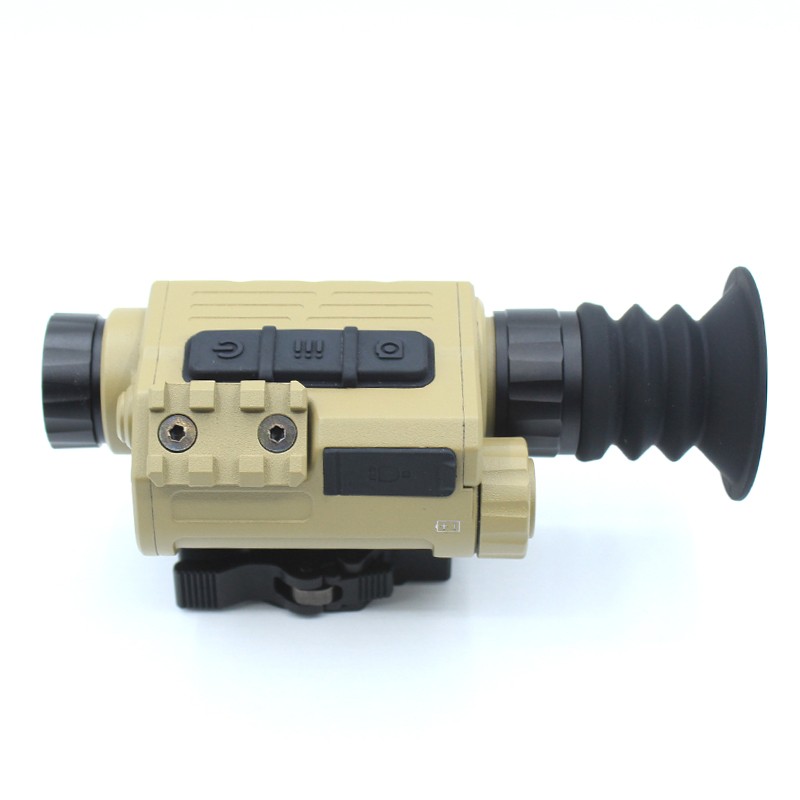

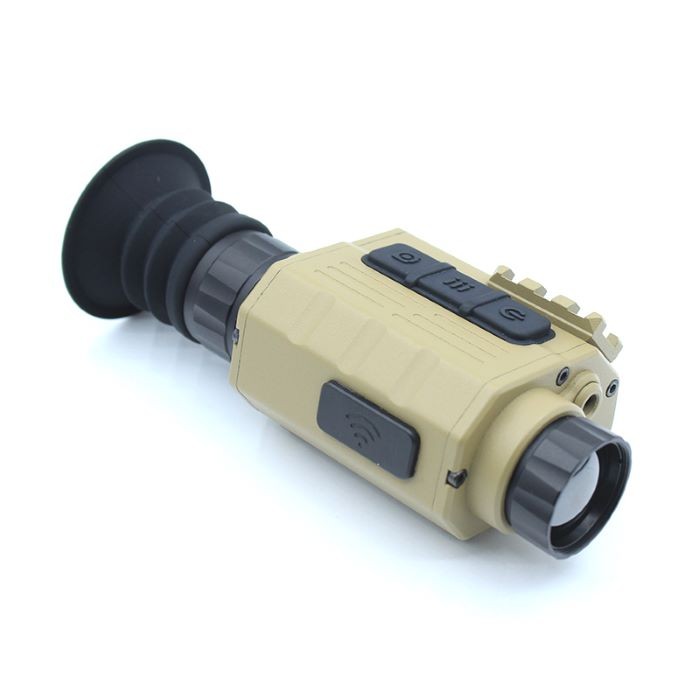

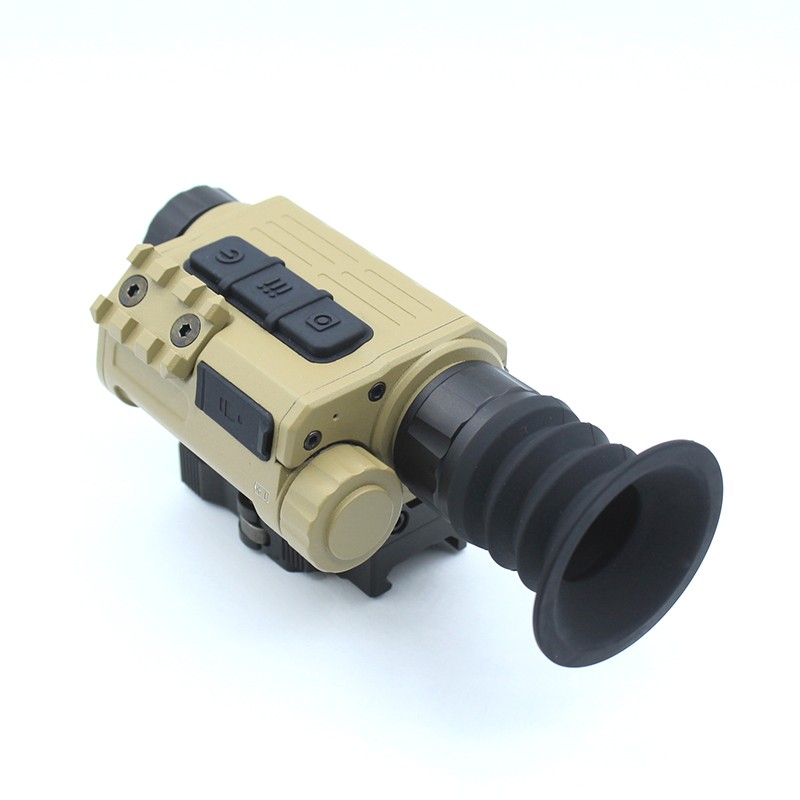

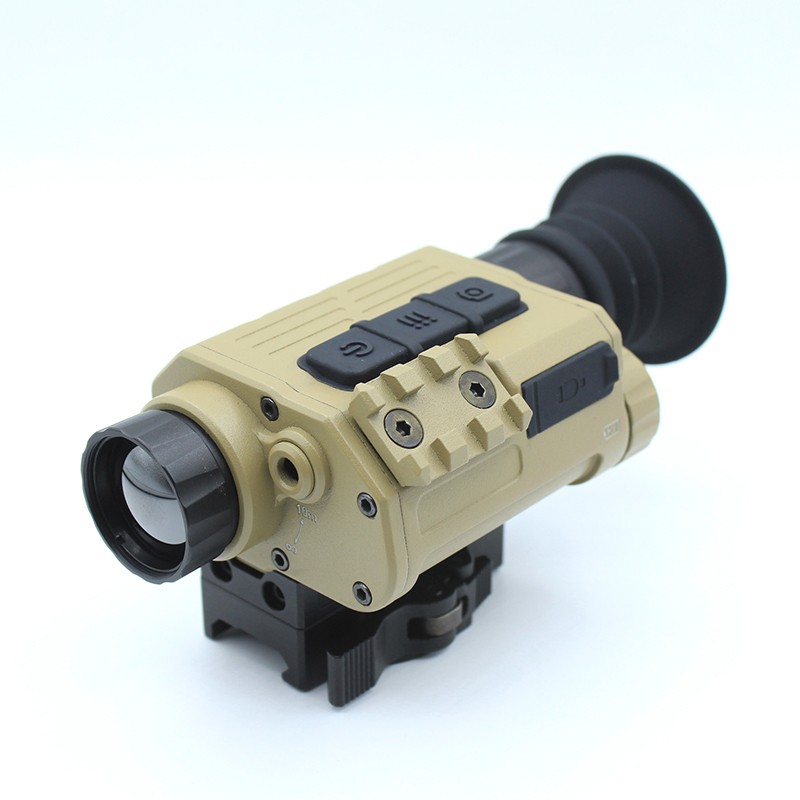

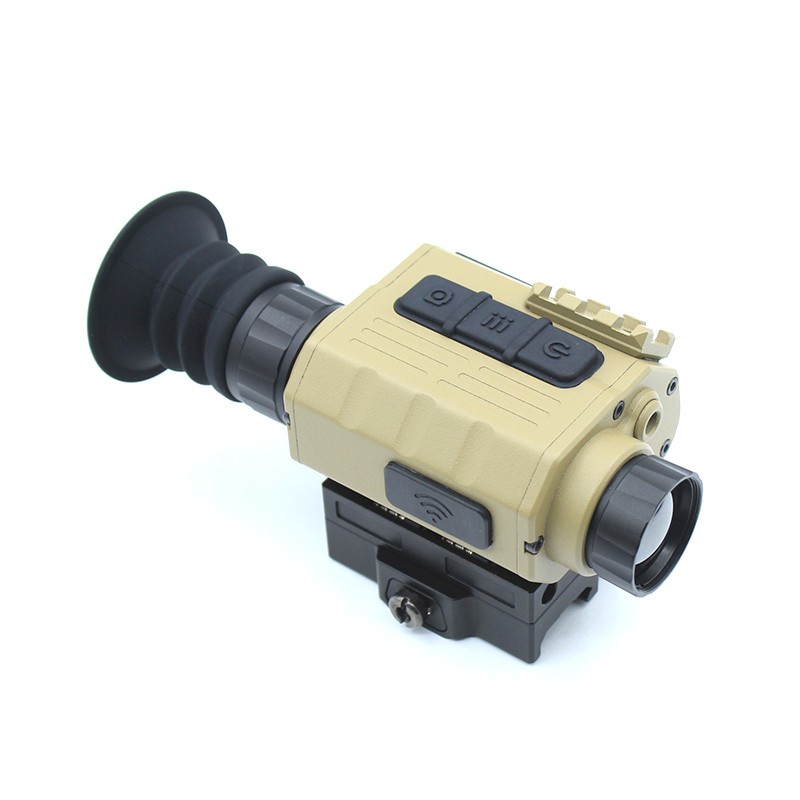

Ranger 640 25mm Multi Function Thermal Imager

This product is an infrared thermal imaging night vision optical sighting scope that uses an uncooled infrared focal plane detector, and is paired with a white light sight to enhance its night vision capability. The infrared front mirror is quickly installed on the objective end of the thermal imaging sight using a connecting bracket, and the shooter can see a clear infrared thermal imaging image at the eyepiece end of the white light sight, so that the shooter can
quickly search for heat source targets all day and night under complex weather conditions, and observe and aim to achieve precise strikes on the target.

EMAIL

Model NO

Ranger 640

Thermal Detector

640×512/12μm

Objective lens

25mm/F1.0

Human recognition

600m

Vehicle recognition

1070m

Frame rate

50Hz

FOV

17.2°×13.7°

Focus

1m~

Diopter

-4~+4SD

Exit   pupil distance

15mm-35mm

Palette

White, black, red, green, iron   red

Power

1x18650

OLED display

1024×768

Storage

64G

IP level

IP67

Working   temperature

-40℃~50℃

Storage   temperature

-50℃~60℃
