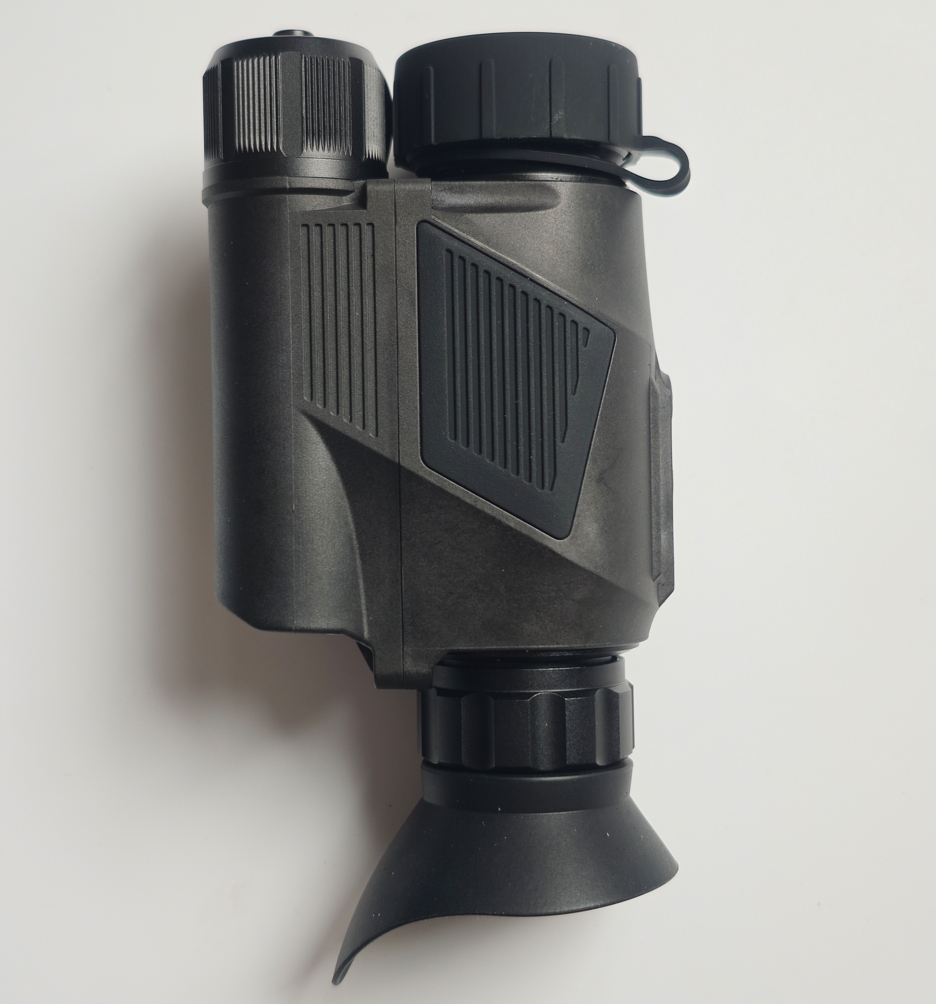

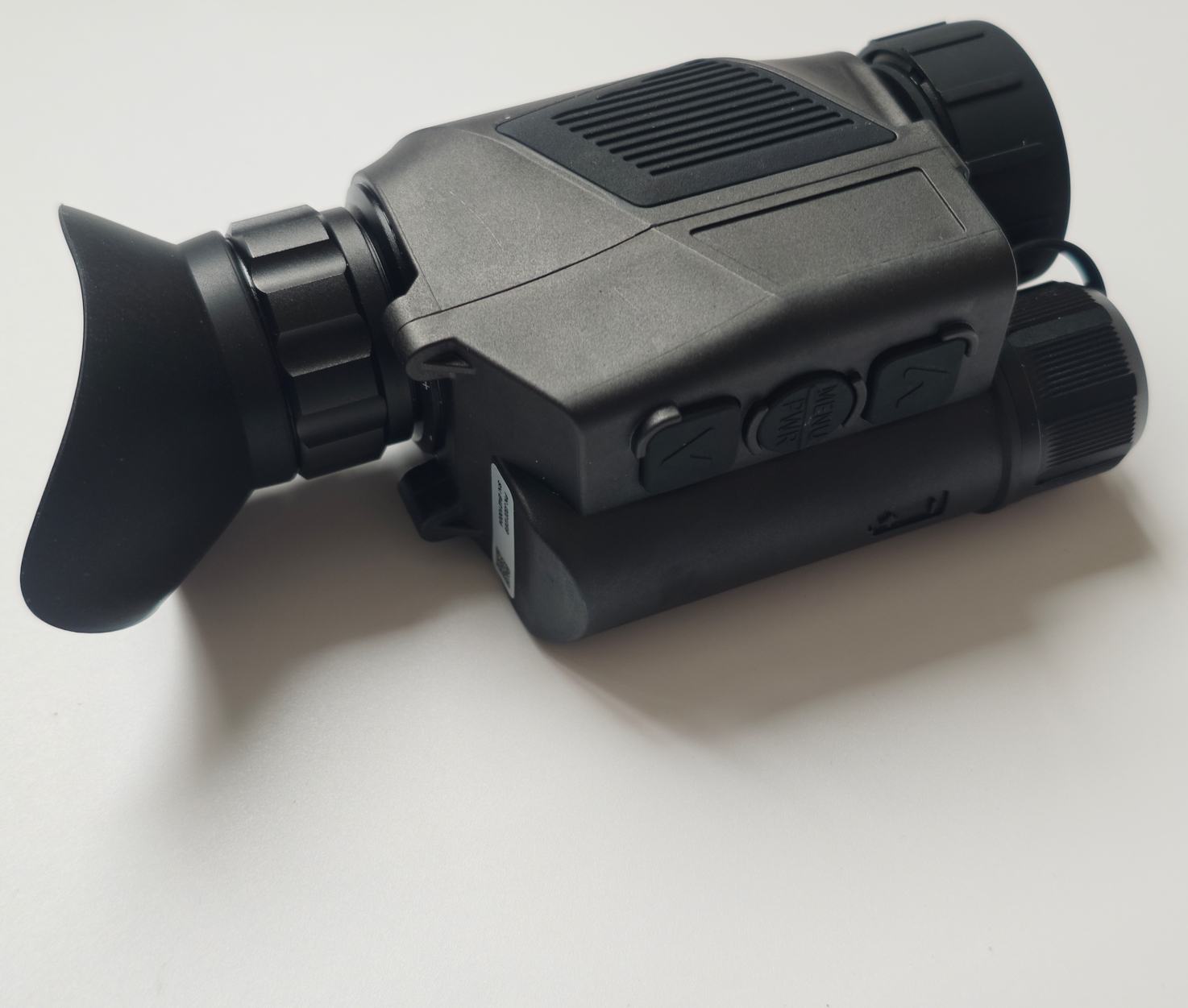

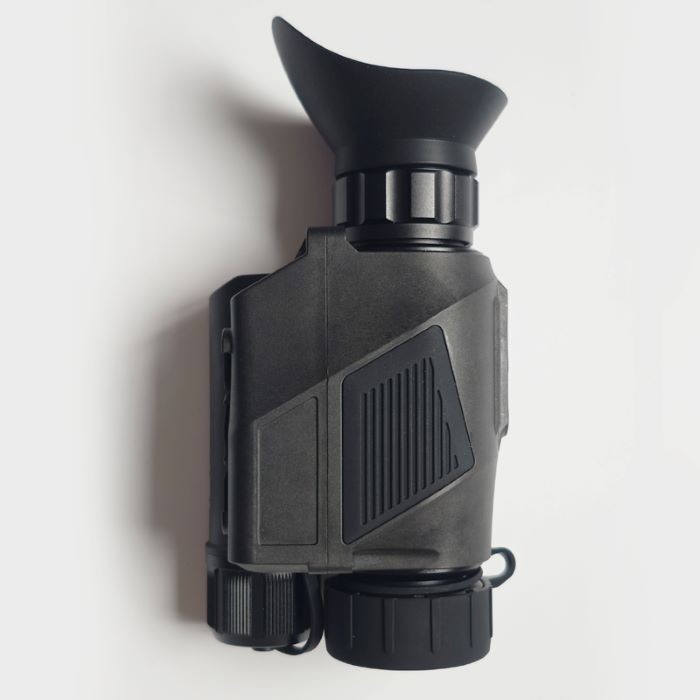

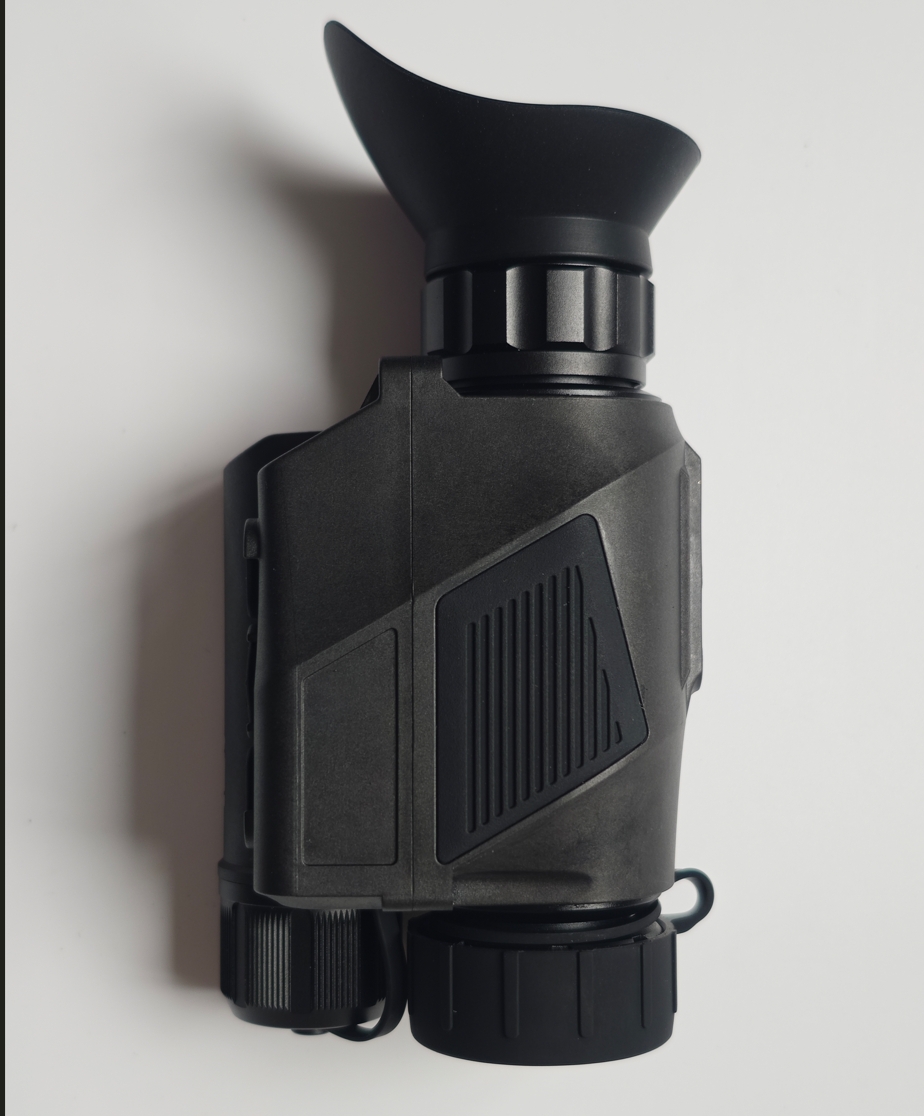

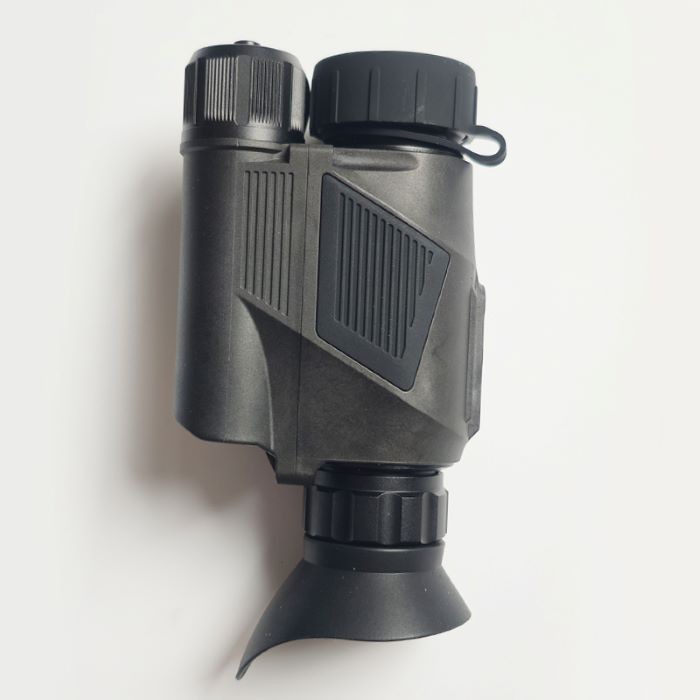

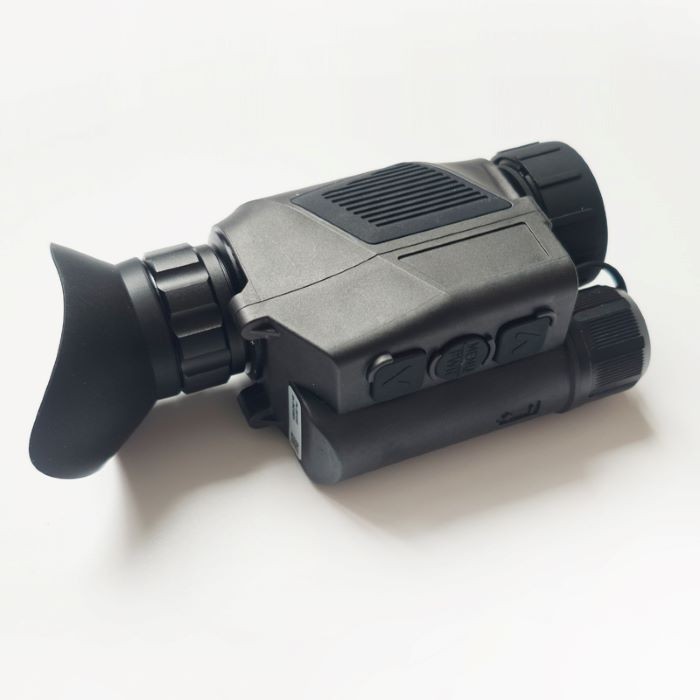

The Jerry-YM is a high-performance multifunctional thermal camera equipped with a 12μm, 640×512 (50Hz), NETD≤25 mK thermal imaging detector for high-definition imaging at a high refresh rate. Based on advanced image processing algorithms, this device shows clear targets and smooth images. Besides, it also features a 64G memory, digital magnetic compass, image capture, video taking, and connection to apps.
| Item | Jerry-YM | |
| Name | Jerry-YM 2.0 | |
| Thermal | Pixel Pitch | 12μm |
| Resoluion | 640x512 | |
| Frame Rate | 50 Hz | |
| Display(OLED) | 1024x768 | |
| Optical | Focal Length F1.0 | 26.7mm |
| FOV | 16.3°x12.3° | |
| Optical Magnification | 1x | |
| Diopter Adjustment | -5,+2 | |
| EYE Relief | >20mm | |
| Display Mode | white-hot,black-hot,iron-hot,green-hot,red-hot | |
| Functional Parameters | digital zoom | 1-6x |
| Electronic Compass | azimuth,pitch,roll | |
| Wi-Fi | support | |
| Video/Image Capture | support | |
| Power Parameters | Battery | 1x18650(3.7V) |
| Max.Battery Capacity(w/o Wi-Fi) | >10h | |
| Identification Distance | Identification Distance(human) | 630m |
| Detection Distance(human) | 1800m | |
| Weight&Volume | Weight(w/o battery) | ≤300g |
| Volume(mm) | 113x70x48 | |
| Use Method | handheld,head-mounted,direct-aiming,clip-on | |
| Environmental Requirements | Encapsulation | IP67 |
| Operation Temperature | -10℃-50℃ | |
| External Interface | Type-C | Power supply,serial port,analog video output |

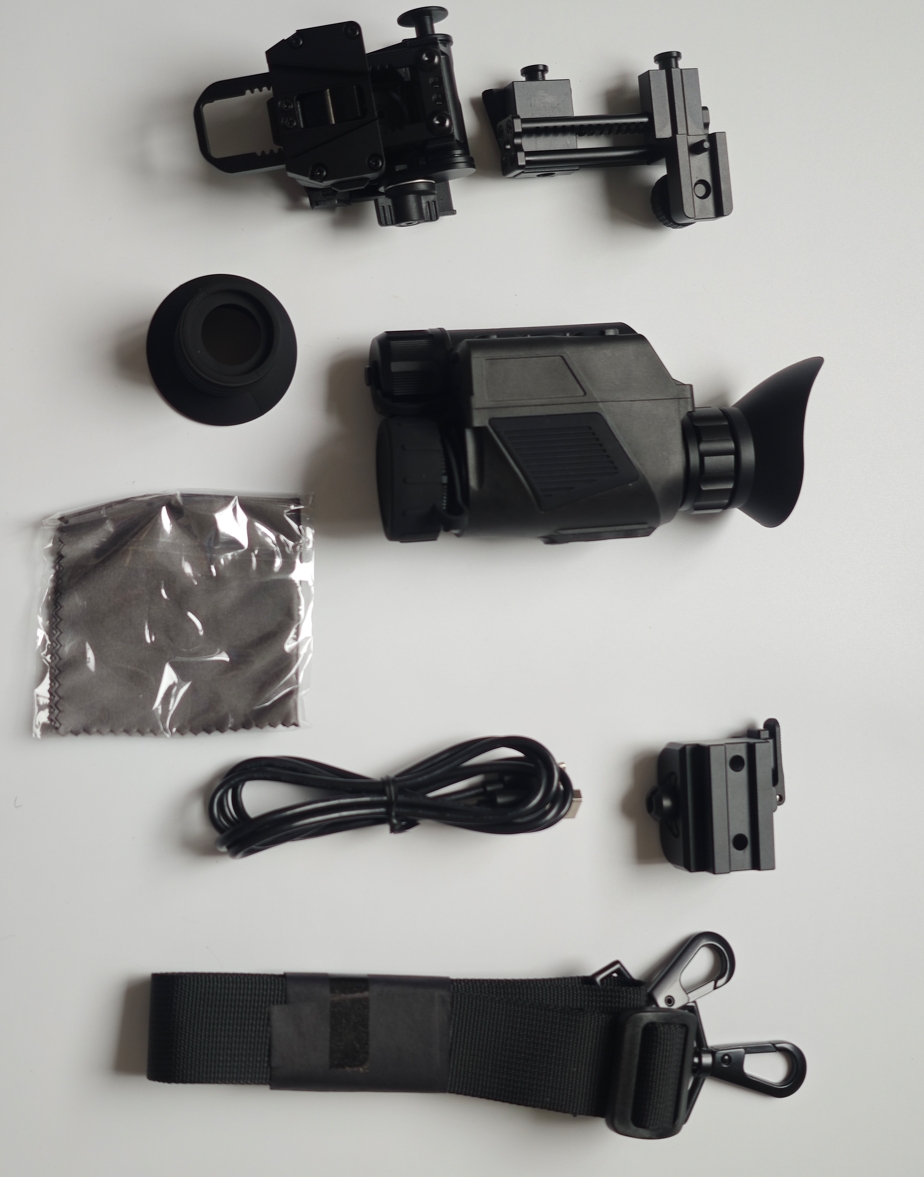

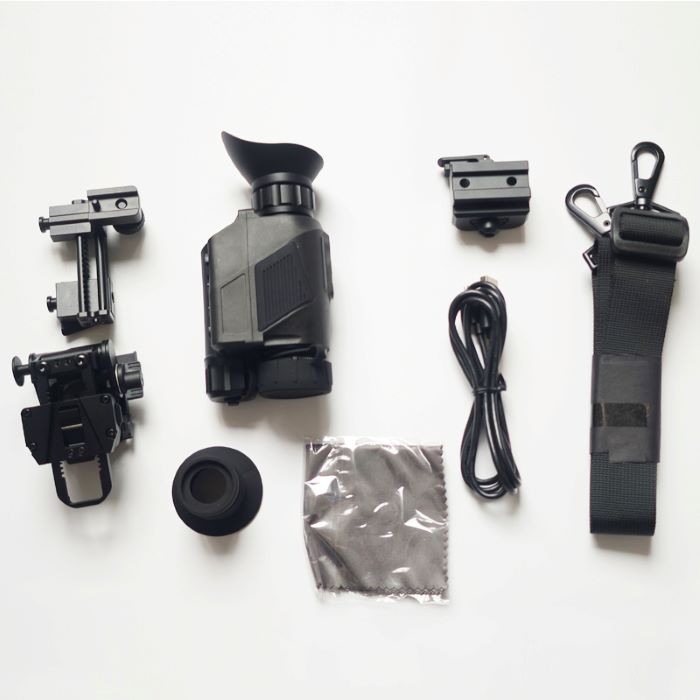

| Necessary Accessories | Cab les(USB20&BNO Helmet support,well-matched support Carrying Bag User Manual Cleaning Cloth | |
